(Note: This table assumes a (slow) computer that can do 10,000 operations per second.)
(D-Problems discussed on Friday, 09-Sep-2016)
(Q-Problems due on Tuesday, 13-Sep-2016)
Practice Problems: (not graded)
These practice problems are meant to help you to "ease into" the materials
covered in the course. (If you have difficulties with these
practice problems, please quickly see your classmates
or the instructor for help.)
T5-PP1: Practice Problem 1 (Ch-3.3.2), p.101 of [SG6] (p.88 of [SG3]).
T5-PP2:
Practice Problem 1 (Ch-3.3.3), p.107 of [SG6] (p.94 of [SG3]).
For each of the following lists, perform a selection sort
and show the list after each exchange (swap) operation is done.
(a) 4, 8, 2, 6 (b) 12, 3, 6, 8, 2, 5, 7 (c) D, B, G, F, A, C, E
T5-PP3: Prob 6 on p.140 of [SG6] (Prob. 5 on p.121 of [SG3]).
T5-PP4: Probs 22,23 on p.142 [SG6] (Problem 19,20 on p.122 of [SG3]).
T5-PP5: Prob 33 on p.145 of [SG6] (Prob 28 on p.123 of [SG3]).
Discussion Problems: -- Prepare (individually)
for tutorial discussion.
T5-D0: Compulsory Readings
(a) Read lecture notes (L03c-Alg-Prob-Solving-NEW.pdf).
(b) Read Section 3.3 & 3.4, pp. 95-130 of [SG6] (pp. 84--112 of [SG3]).
Can skip Section 3.4.1.
T5-D1: (Time complexity of Array-Sum(A,n), Count-Pos(A,n), Find-Max(A,n),
Seq-Search(N,T,n,NAME))
Consider the algorithms
Array-Sum(A,n), Count-Pos(A,n), Find-Max(A,n), Seq-Search(N,Tel,n,NAME)
from the lecture notes.
Analyze each of these algorithms and show that their time complexity, namely, worst-case running time is Θ(n).
T5-D2:
What are the running times of your algorithms for
Hamming-Dist(S,R,m) from T4-D3, expressed in Θ-notations.
T5-D3: [Sequential Search vs Binary Search]
See lecture notes for sequential search and binary search algorithms.
Given an array A[1..7] of numbers:
A[1..7] = [3, 5, 8, 13, 21, 34, 55].
To search for the number 21, using sequential search algorithm, 5 comparisons are needed (search thru 3,5,8,13,21). If we use binary search algorithm, we need 3 comparisons (search thru 13,34,21).
Fill up the following table. Each entry is the number of comparisons needed when
searching for each number (in Column 1) with the two algorithms.
Also give the sequence of comparisons made by each algorithm.
Two examples are given, as illustration.
(Note: The top half of table are successful searches, bottom half are unsuccessful searches.)
| Number searched | Sequential search | Binary search |
| 3 | ||
| 5 | ||
| 8 | ||
| 13 | ||
| 21 | 5 comps (3,5,8,13,21) | 3 comps (13,34,21) |
| 34 | ||
| 55 | ||
| 2 | ||
| 4 | ||
| 6 | ||
| 11 | ||
| 18 | 7 comps (3,5,8,13,21,34,55)-NF | 3 comps (13,34,21)-NF |
| 29 | ||
| 48 | ||
| 68 |
T5-D4: (Order of Growth of Functions)
In this problem, we compare algorithms of different rates of growth.
And we show how the rate of growth is the most critical factor, but the
constant factors are not the most critical.
(a) [Linear vs Quadratic] (Variant of Prob 14, p.141 [SG6] (Prob 11, p.121 [SG3]))
Algorithm A has time complexity of 40000n
(linear in n,
with big constant factor 40000).
Algorithm B has time complexity of 4n2
(quadratic in n,
with small constant factor 4).
Clearly, when n is small (like 10 or 20), Algorithm A is slower than Algorithm B.
(i) At approximately what value of n does
Algorithm A become faster than Algorithm B?
(ii) What if I make the constant factor for Algorithm A even bigger than 40000
and the constant factor for Algorithm B even smaller.
Will Algorithm A still be faster than Algorithm B eventually?
(b) [Quadratic vs Exponential] (Variant of Prob 32, p.144 [SG6], (Prob 27, p.123 [SG3]))
(i) At approximately what value of n does
an Algorithm P with time complexity 40000n2 become
faster than another Algorithm Q with time complexity 4(2n)?
(ii) What if I make the constant for Algorithm P even bigger than 40000
and the constant for Algorithm Q even smaller than 4?
Will Algorithm P still be faster than Algorithm Q eventually?
[Hint: We do not need the minimum or the exact value. Plot an Excel table of the two functions to see approximately when they "cross" each other.]
Problems to be Handed in for Grading by the Deadline:
(Note: Please submit hard copy to me.
Not just soft copy via email.)
T5-Q1: (10 points) [Tracing the Pattern-Matching Algorithm]
We want to use the pattern matching algorithm Pat-Match(S,n,P,m) from
the lecture notes (not the one from the book [SG]).
Suppose you are given the following source text S[1..n]:
H E R E A N D T H E R E B U T W H E R E I S T H E R E A L S P H E R E
and the search pattern P[1..m] = "H E R E".
(Note: The spaces are not there, they are added in for readability only.)
(a)
What are the values of n and m for the above example?
(b)
What is the output produced by algorithm Pat-Match(S,n,P,m)?
(c)
The algorithm Pat-Match(S,n,P,m) calls the high-level primitive
Match (S, k, P, m) name times. How many such calls are made for this example?
T5-Q2: (5 points) [Query Processing with Multiple Lists]
You are given information about the n students in NUS stored in
five lists of length n:
Student-ID[1..n], Name[1..n], Tel-No[1..n], Faculty[1..n], Major[1..n].
(You can assume that the respective data have already been read into the lists.)
(a)
Write an algorithm that will print out
the Name and Tel-No of students majoring in "CSITR-Go".
Namely, print out
Name[k], Tel-No[k],
for all k where Major[k]="CSITR-Go".
(b) What is the time complexity of your algorithm
(in terms of n)?
T5-Q3: (15 points) [Algorithmic Problem Solving. Modified from 2013 Mid-Term]
(a) (5 points) [Max-Sum Pair]
You are given a list P[1..n] of n positive integers.
(For simplicity, assume the integers are all distinct.)
We want to choose two numbers that has the maximum sum.
(For example, if P[1..6] = [4, 9, 1, 6, 7, 5],
then 9 and 7 gives a maximum sum of 16.)
Design an algorithm for finding this maximum-sum pair of numbers
given any list P[1..n] of n positive integers.
What is the time complexity of your algorithm?
(b) (10 points) [Target-Sum Pair]
Now, we want to choose two numbers from
P[1..n] that sum up to a given target value TS.
(In the example, if target TS=11,
then the numbers 6 and 5 give a sum of 11.)
Design an algorithm for choosing two numbers from the list P[1..n]
that sum up to a given target number TS.
What is the time complexity of your algorithm?
(Note: For both (a) and (b), give your algorithm in pseudo-code. You are free to quote any algorithm covered in the course. Quote them as high-level primitives and clearly state what they do.)
T5-Q4: (10 points) [Time Complexity and How Fast They Grows]

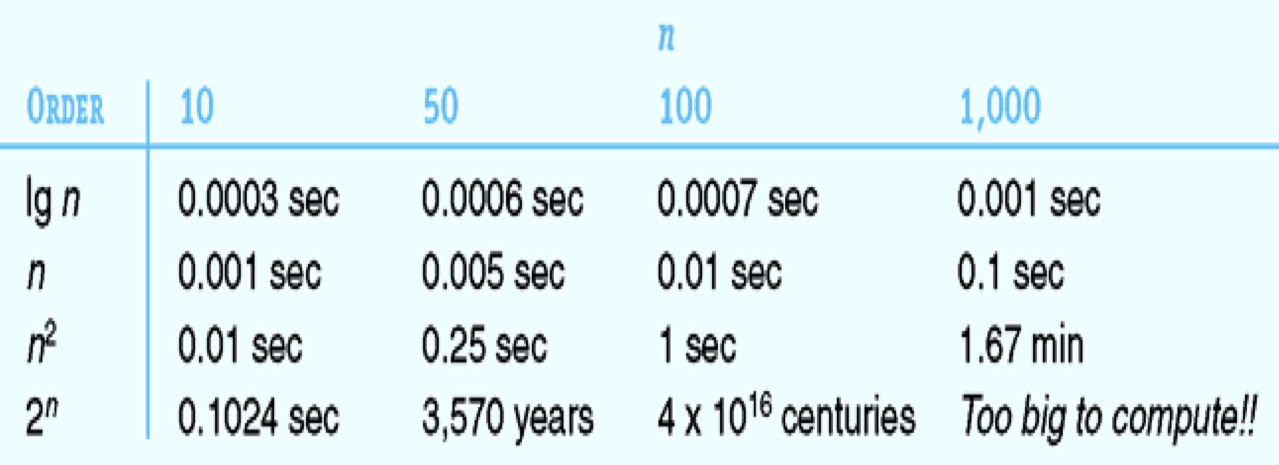

Figure 3.27 [SG6],[SG3] (shown below) gives the comparison of
four different time complexity functions (rows),
namely, lg n, n, n2, 2n,
for four different values of n (columns),
namely, n=10, 50, 100, 1,000.
(Note: All logarithms in this course (such as lg n) are base 2 (namely, lg2(n)).)
(Note: This table assumes a (slow) computer that can do 10,000 operations per second.)
Extend this table by inserting in
(a) two new rows with time complexity functions
n(lg n) and
n3 and
(b) two more columns for
n=1,000,000 (or 106) and
1,000,000,000 (or 1 x 109).
Print out the extended table with
the rows in increasing order of growth
(namely, lg n, n,
n(lg n),
n2,
n3,
2n), and
the columns in increasing value of n.
(Note that n(lg n)
lies in between n and n2; while
n3
lies in between n2 and 2n.)
Note: To illustrate these time complexities (or orders of growth), we note that
A5-2016: [MAX-and-min]
Give an algorithm that finds the MAXIMUM and minimum in an
array A[1..n] of n numbers using at most 1.5n comparisons.
