Problem Solving with Sequence

Problem Set

The following problem sets are intended for practice. Attempt these on your own.

Donut

Problem

P01

Problem Description

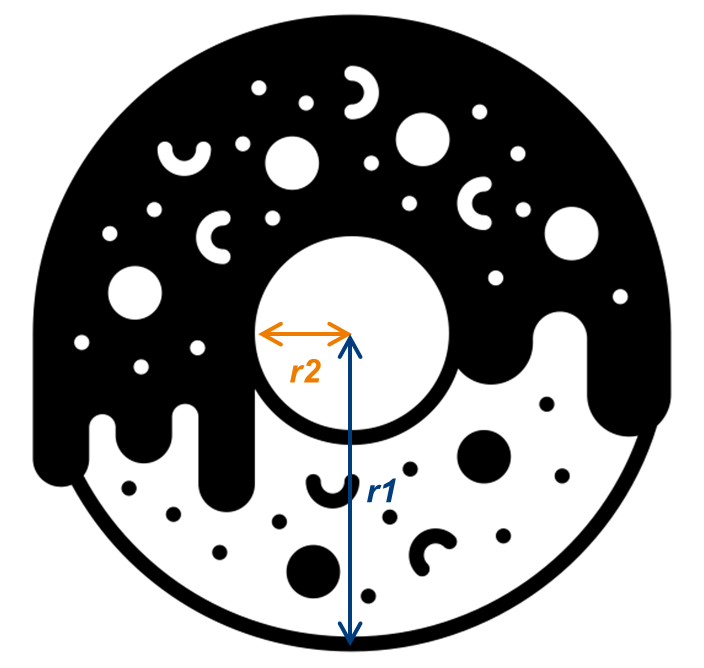

Consider a donut of height h such that the radius is r1 and the center hole has a radius of r2. We let r1 > r2 because the hole cannot be bigger than the donut! Recap that the are of a circle of radius \(r\) is given by the formula below.

\[ A = \pi r^2 \]

We let \(\pi\) to be 3.1415 for simplicity. Afterall, we do not need high precision for our donuts, we enjoy it anyway. Now, the volume of the donut should be the area times height.

Task

Write Python code to compute and print the volume of the donut. We assume that the donut is more like a cylinder so that the formula for the volume above is valid.

Assumptions

0 < r2 < r1
0 < h
h, r1, and r2 are already initialized.

Hints

Hint #1

HintAnswer

Can you compute the area of the donut if there is no hole (i.e., assume the hole is filled)?

a1 = 3.1415 * r1 * r1

Hint #2

HintAnswer

Can you compute the area of the hole?

a2 = 3.1415 * r2 * r2

Hint #3

HintAnswer

Given area of donut without hole (i.e., assume the hole is filled) and area of hole, can you compute the area of donut?

Let a1 be area of donut without hole (i.e., assume the hole is filled) and a2 be the area of the hole.

donut_area = a1 - a2

Hint #4

HintAnswer

Given the area of donut, can you compute the volume?

Assuming donut_area is the area of the donut.

volume = donut_area * h

Possible Solution

# Assume h, r1, and r2 are initialized
a1 = 3.1415 * r1 * r1
a2 = 3.1415 * r2 * r2
donut_area = a1 - a2
volume = donut_area * h
print(volume)

Cartesian Distance

Problem

P02

Problem Description

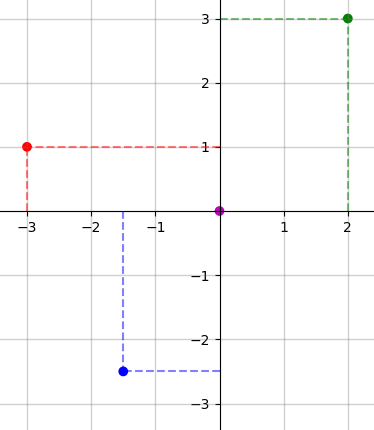

We can represent a point in a Cartesian coordinate with two values. One value represents the position in the x-coordinate and another value represents the position in the y-coordinate. This is written as \((x, y)\). For instance, the red point is at (-3, 1) and the green point is at (2, 3).

Given two points \(p_1 = (x_1, y_1)\) and \(p_2 = (x_2, y_2)\), the distance between them can be computed with the following formula.

\[ d = \sqrt{(x_1 - x_2)^2 + (y_1 - y_2)^2} \]

Task

Write Python code to compute and print the distance between two points represented by (x1, y1) and (x2, y2).

Assumptions

x1, x2, y1, and y2 are integers.
x1, x2, y1, and y2 are already initialized.

Hints

Hint #1

HintAnswer

First step is to compute \(x_1 - x_2\). Also compute \(y_1 - y_2\). What is the expression?

dx = x1 - x2
dy = y1 - y2

Hint #2

HintAnswer

How do you compute the square of a value?

Two possibilities:

dx * dx

dy ** 2

Hint #3

HintAnswer

How do you compute the square root of a value?

v ** (0.5)

Possible Solution

dx = x1 - x2
dy = y1 - y2
dist = (dx * dx + dy * dy) ** 0.5
print(dist)

Matchstick

Problem

P03

Problem Description

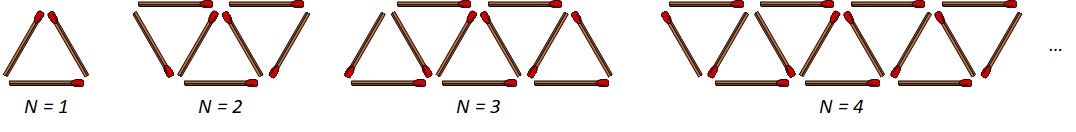

We want to create a pattern using matchstick as shown above. The pattern for a given \(N\) is created by first creating a pattern for \(N - 1\) and then we add 2 additional triangles on the sides.

Task

Write Python code to compute and print the number of matchstick needed for a given \(N\). The initial value for \(N\) is given in the variable n.

Assumptions

0 < n

Hints

Hint #1

HintAnswer

Can you create the pattern for \(N = 5\)?

P03A

Hint #2

Hintm1m2m3

n	match
1	3
2	7
3	11
4	15
:	:
n	m1

Can you find the formula? Formulate \(m1\) in terms of \(n\). You can use the table above.

n	match	m1
1	3	3 = 3 + 0
2	7	7 = 3 + 4
3	11	11 = 3 + 8
4	15	15 = 3 + 12
:	:	:
n	m1	m1 = 3 + m2

Formulate \(m2\) in terms of \(n\).

n	match	m1	m2
1	3	3 = 3 + 0	0 = 0 * 4
2	7	7 = 3 + 4	4 = 1 * 4
3	11	11 = 3 + 8	8 = 2 * 4
4	15	15 = 3 + 12	12 = 3 * 4
:	:	:	:
n	m1	m1 = 3 + m2	m2 = m3 * 4

Formulate \(m3\) in terms of \(n\).

n	match	m1	m2	m3
1	3	3 = 3 + 0	0 = 0 * 4	0 = 1 - 1
2	7	7 = 3 + 4	4 = 1 * 4	1 = 2 - 1
3	11	11 = 3 + 8	8 = 2 * 4	2 = 3 - 1
4	15	15 = 3 + 12	12 = 3 * 4	3 = 4 - 1
:	:	:	:	:
n	m1	m1 = 3 + m2	m2 = m3 * 4	m3 = n - 1

Does it work for \(n = 5\)?

Possible Solution

# Assume n is initialized
m3 = n - 1
m2 = m3 * 4
m1 = 3 + m2
print(m1)

Can you convert this into a single line?

Copy m3Copy m2Copy m1

# Assume n is initialized
# m3 is copied
m2 = (n - 1) * 4
m1 = 3 + m2
print(m1)

# Assume n is initialized
# m3 is copied
# m2 is copied
m1 = 3 + ((n - 1) * 4)
print(m1)

# Assume n is initialized
# m3 is copied
# m2 is copied
# m1 is copied
print(3 + ((n - 1) * 4))

This process can also be done in reverse.
