Alter a Queue Table

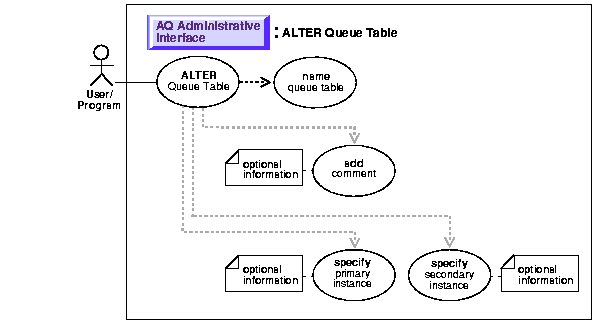

Figure 9-4 Use Case Diagram: Alter a Queue Table

To refer to the table of all basic operations having to do with the Administrative Interface see: "Use Case Model: Administrative Interface -- Basic Operations"

Purpose

Alter the existing properties of a queue table.

Usage Notes

Not applicable.

Syntax

See Chapter 3, "AQ Programmatic Environments" for a list of available functions in each programmatic environment. Use the following syntax references for each programmatic environment:

• PL/SQL (DBMS_AQADM Package): Oracle8i Supplied PL/SQL Packages Reference DBMS_AQADM, ALTER_QUEUE_TABLE procedure

• Visual Basic (OO4O): There is no applicable syntax reference for this use case

• Java (JDBC): Oracle8i Supplied Java Packages Reference oracle.AQ,alterQueue

Examples

See Chapter 3, "AQ Programmatic Environments" for a list of available functions in each programmatic environment. Examples are provided in the following programmatic environments.

• PL/SQL (DBMS_AQADM Package): Alter a Queue Table

• VB (OO4O): Example not provided.

• Java (JDBC): Alter a Queue Table

PL/SQL (DBMS_AQADM Package): Alter a Queue Table

/* Altering the table to change the primary, secondary instances for queue owner
   (only applicable for OPS environments).The primary instance is the instance
   number of the primary owner of the queue table. The secondary instance is the
   instance number of the secondary owner of the queue table. */
 EXECUTE dbms_aqadm.alter_queue_table (
   Queue_table          => 'aq.ObjMsgs_qtab',
   Primary_instance     => 3,
   Secondary_instance   => 2);

/* Altering the table to change the comment for a queue table: */
EXECUTE dbms_aqadm.alter_queue_table (
   Queue_table          => 'aq.ObjMsgs_qtab',
   Comment              => 'revised usage for queue table');

Java (JDBC): Alter a Queue Table

/* Alter a queue table */
public static void example(AQSession aq_sess) throws AQException
{
     AQQueueTableProperty    qtable_prop;
     AQQueueTable            q_table;

     q_table = aq_sess.getQueueTable ("aq", "ObjMsgs_qtab");

     /* Get queue table properties: */
     qtable_prop = q_table.getProperty();

     /* Alter the queue table comment and instance affinity */
     q_table.alter("altered queue table", 3, 2);
}
