Trim Temporary LOB Data

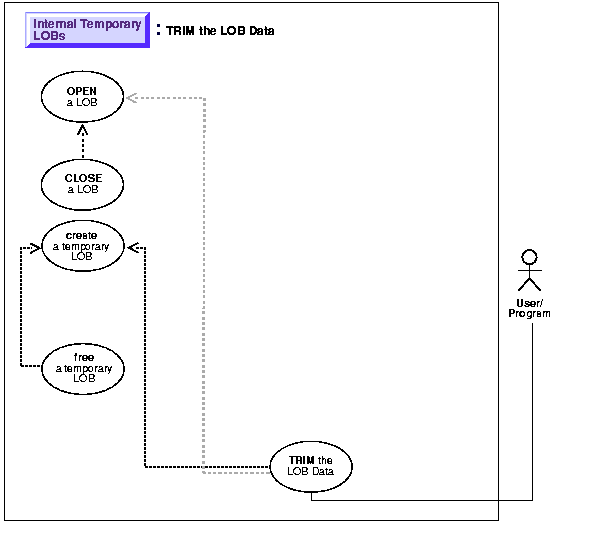

Figure 10-23 Use Case Diagram: Trim Temporary LOB Data

See: "Use Case Model: Internal Temporary LOBs", for all basic operations of Internal Temporary LOBs.

Purpose

This procedure describes how to trim temporary LOB data.

Usage Notes

Not applicable.

Syntax

See Chapter 3, "LOB Programmatic Environments" for a list of available functions in each programmatic environment. Use the following syntax references for each programmatic environment:

• PL/SQL (DBMS_LOB): Oracle8i Supplied PL/SQL Packages Reference Chapter 18, "DBMS_LOB" -- TRIM

• C (OCI): Oracle Call Interface Programmer's Guide Chapter 15, "Relational Functions" -- LOB Functions, OCILobTrim

• COBOL (Pro*COBOL): Pro*COBOL Precompiler Programmer's Guide: Appendix F, "Embedded SQL and Precompiler Directives" -- LOB TRIM

• C/C++ (Pro*C/C++): Pro*C/C++ Precompiler Programmer's Guide Appendix F, "Embedded SQL Statements and Directives" -- LOB TRIM

• Visual Basic (OO4O): There is no applicable syntax reference for this use case.

• Java (JDBC): There is no applicable syntax reference for this use case.

Scenario

The following examples access text (CLOB data) referenced in the Script column of table Voiceover_tab, and trim it.

Examples

Examples are provided in the following programmatic environments:

• PL/SQL (DBMS_LOB Package): Trim Temporary LOB Data

• C (OCI): Trim Temporary LOB Data

• COBOL (Pro*COBOL): Trim Temporary LOB Data

• C/C++ (Pro*C/C++): Trim Temporary LOB Data

• Visual Basic (OO4O): No example is provided with this release.

• Java (JDBC): No example is provided with this release.

PL/SQL (DBMS_LOB Package): Trim Temporary LOB Data

/* Note that the example procedure trimTempLOB_proc is not part of the
   DBMS_LOB package. */
CREATE OR REPLACE PROCEDURE trimTempLOB_proc IS
   Lob_loc        CLOB;
   Amount         number;
   Src_loc        BFILE := BFILENAME('AUDIO_DIR', 'Washington_audio');
   TrimAmount     number := 100;
BEGIN
   /* Create a temporary LOB: */
   DBMS_LOB.CREATETEMPORARY(Lob_loc,TRUE);
   /* Opening the LOB is optional: */
   DBMS_LOB.OPEN (Lob_loc, DBMS_LOB.LOB_READWRITE);
   /* Opening the file is mandatory: */
   DBMS_LOB.OPEN(Src_loc, DBMS_LOB.LOB_READONLY);
   /* Populate the temporary LOB with some data: */
   Amount := 32767;
   DBMS_LOB.LOADFROMFILE(Lob_loc, Src_loc, Amount);
   DBMS_LOB.TRIM(Lob_loc,TrimAmount);
   /* Closing the LOB is mandatory if you have opened it: */
   DBMS_LOB.CLOSE (Lob_loc);
   DBMS_LOB.CLOSE(Src_loc);
   DBMS_LOB.FREETEMPORARY(Lob_loc);
COMMIT;
EXCEPTION
   WHEN OTHERS THEN
      DBMS_OUTPUT.PUT_LINE('Operation failed');
END;

C (OCI): Trim Temporary LOB Data

sb4 trim_temp_lobs (  OCIError      *errhp,
                      OCISvcCtx     *svchp,
                      OCIStmt       *stmthp,
                      OCIEnv        *envhp)
{
  OCILobLocator *tblob;
  OCILobLocator *bfile;
  ub4 amt = 4000;
  ub4 trim_size = 2;
  sb4 return_code = 0;

  printf("in trim\n");
  if(OCIDescriptorAlloc((dvoid *)envhp, (dvoid **) &tblob,
                        (ub4) OCI_DTYPE_LOB,
                        (size_t) 0, (dvoid **) 0))
  {
     printf("OCIDescriptor Alloc FAILED in trim\n");
     return -1;
  }

  if(OCIDescriptorAlloc((dvoid *)envhp, (dvoid **) &bfile,
                        (ub4) OCI_DTYPE_FILE,
                        (size_t) 0, (dvoid **) 0))
  {
     printf("OCIDescriptor Alloc FAILED in trim\n");
     return -1;
  }

  /* Set the BFILE to point to the Washington_audio file: */
  if(OCILobFileSetName(envhp, errhp, &bfile, (text *)"AUDIO_DIR",
                       (ub2)strlen("AUDIO_DIR"),
                       (text *)"Washington_audio",
                       (ub2)strlen("Washington_audio")))
  {
    printf("OCILobFileSetName FAILED\n");
    return -1;
  }

  if (OCILobFileOpen(svchp, errhp, (OCILobLocator *) bfile, OCI_LOB_READONLY))
  {
    printf( "OCILobFileOpen FAILED  for the bfile\n");
    return_code = -1;
  }

  if(OCILobCreateTemporary(svchp,errhp,tblob,(ub2)0, SQLCS_IMPLICIT,
                           OCI_TEMP_BLOB, OCI_ATTR_NOCACHE,
                           OCI_DURATION_SESSION))
  {
     (void) printf("FAILED: CreateTemporary() \n");
     return -1;
  }

  if (OCILobOpen(svchp, errhp, (OCILobLocator *) tblob, OCI_LOB_READWRITE))
  {
    printf( "OCILobOpen FAILED for temp LOB \n");
    return_code =  -1;
  }

  /* populate the temp LOB with 4000 bytes of data */
  if(OCILobLoadFromFile(svchp, errhp, tblob, (OCILobLocator*)bfile,
                        (ub4)amt,(ub4)1,(ub4)1))
  {
    printf( "OCILobLoadFromFile FAILED\n");
    return_code = -1;
  }

  if (OCILobTrim(svchp, errhp, (OCILobLocator *) tblob, trim_size))
  {
      printf( "OCILobTrim FAILED for temp LOB \n");
      return_code = -1;
  } else
  {
      printf( "OCILobTrim succeeded for temp LOB \n");
  }

  if (OCILobClose(svchp, errhp, (OCILobLocator *) bfile))
  {
    printf( "OCILobClose FAILED for bfile \n");
    return_code =  -1;
  }

  if (OCILobClose(svchp, errhp, (OCILobLocator *) tblob))
  {
    printf( "OCILobClose FAILED for temporary LOB \n");
    return_code =  -1;
  }
  /* Free the temporary LOB now that we are done using it: */
  if(OCILobFreeTemporary(svchp, errhp, tblob))
  {
    printf("OCILobFreeTemporary FAILED \n");
    return_code = -1;
  }
  return return_code;
  }

COBOL (Pro*COBOL): Trim Temporary LOB Data

       IDENTIFICATION DIVISION.
       PROGRAM-ID. TEMP-LOB-TRIM.
       ENVIRONMENT DIVISION.
       DATA DIVISION.
       WORKING-STORAGE SECTION.

       01  USERID   PIC X(11) VALUES "SAMP/SAMP".
       01  TEMP-BLOB      SQL-BLOB.
       01  SRC-BFILE      SQL-BFILE.
       01  DIR-ALIAS      PIC X(30) VARYING.
       01  FNAME          PIC X(20) VARYING.
       01  DIR-IND        PIC S9(4) COMP.
       01  FNAME-IND      PIC S9(4) COMP.
       01  AMT            PIC S9(9) COMP VALUE 10.
       01  ORASLNRD        PIC 9(4).

           EXEC SQL INCLUDE SQLCA END-EXEC.
           EXEC ORACLE OPTION (ORACA=YES) END-EXEC.
           EXEC SQL INCLUDE ORACA END-EXEC.

       PROCEDURE DIVISION.
       TEMP-LOB-TRIM.
           EXEC SQL WHENEVER SQLERROR DO PERFORM SQL-ERROR END-EXEC.
           EXEC SQL
                CONNECT :USERID
           END-EXEC.

      * Allocate and initialize the BFILE and BLOB locators:
           EXEC SQL ALLOCATE :TEMP-BLOB END-EXEC.
           EXEC SQL ALLOCATE :SRC-BFILE END-EXEC.
           EXEC SQL
                LOB CREATE TEMPORARY :TEMP-BLOB
           END-EXEC.

      * Set up the directory and file information:
           MOVE "AUDIO_DIR" TO DIR-ALIAS-ARR.
           MOVE 9 TO DIR-ALIAS-LEN.
           MOVE "Washington_audio" TO FNAME-ARR.
           MOVE 16 TO FNAME-LEN.

           EXEC SQL
              LOB FILE SET :SRC-BFILE DIRECTORY = :DIR-ALIAS,
              FILENAME = :FNAME
           END-EXEC.

      * Open source BFILE and destination temporary BLOB:
           EXEC SQL LOB OPEN :TEMP-BLOB READ WRITE END-EXEC.
           EXEC SQL LOB OPEN :SRC-BFILE READ ONLY END-EXEC.
           EXEC SQL
                LOB LOAD :AMT FROM FILE :SRC-BFILE INTO :TEMP-BLOB
           END-EXEC.

      * Trim the last half of the data:
           MOVE 5 TO AMT.
           EXEC SQL LOB TRIM :TEMP-BLOB TO :AMT END-EXEC.

      * Close the LOBs:
           EXEC SQL LOB CLOSE :SRC-BFILE END-EXEC.
           EXEC SQL LOB CLOSE :TEMP-BLOB END-EXEC.

      * Free the temporary LOB:
           EXEC SQL LOB FREE TEMPORARY :TEMP-BLOB END-EXEC.

      * And free the LOB locators:
           EXEC SQL FREE :TEMP-BLOB END-EXEC.
           EXEC SQL FREE :SRC-BFILE END-EXEC.
           STOP RUN.

       SQL-ERROR.
           EXEC SQL WHENEVER SQLERROR CONTINUE END-EXEC.
           MOVE ORASLNR TO ORASLNRD.
           DISPLAY " ".
           DISPLAY "ORACLE ERROR DETECTED ON LINE ", ORASLNRD, ":".
           DISPLAY " ".
           DISPLAY SQLERRMC.
           EXEC SQL ROLLBACK WORK RELEASE END-EXEC.
           STOP RUN.

C/C++ (Pro*C/C++): Trim Temporary LOB Data

void trimTempLOB_proc()
#include <oci.h>
#include <stdio.h>
#include <sqlca.h>

void Sample_Error()
{
  EXEC SQL WHENEVER SQLERROR CONTINUE;
  printf("%.*s\n", sqlca.sqlerrm.sqlerrml, sqlca.sqlerrm.sqlerrmc);
  EXEC SQL ROLLBACK WORK RELEASE;
  exit(1);
}

void trimTempLOB_proc()
{
  OCIBlobLocator *Temp_loc;
  OCIBFileLocator *Lob_loc;
  char *Dir = "AUDIO_DIR", *Name = "Washington_audio";
  int Amount = 4096;
  int trimLength;

  /* Allocate and Create the Temporary LOB: */
  EXEC SQL ALLOCATE :Temp_loc;
  EXEC SQL LOB CREATE TEMPORARY :Temp_loc;

  /* Allocate and Initialize the BFILE Locator: */
  EXEC SQL ALLOCATE :Lob_loc;
  EXEC SQL LOB FILE SET :Lob_loc DIRECTORY = :Dir, FILENAME = :Name;

  /* Opening the LOBs is Optional: */
  EXEC SQL LOB OPEN :Lob_loc READ ONLY;
  EXEC SQL LOB OPEN :Temp_loc READ WRITE;

  /* Load the specified amount from the BFILE into the Temporary LOB: */
  EXEC SQL LOB LOAD :Amount FROM FILE :Lob_loc INTO :Temp_loc;

  /* Set the new length of the Temporary LOB: */
  trimLength = (int) (Amount / 2);

  /* Trim the Temporary LOB to its new length: */
  EXEC SQL LOB TRIM :Temp_loc TO :trimLength;

  /* Closing the LOBs is Mandatory if they have been Opened: */
  EXEC SQL LOB CLOSE :Lob_loc;
  EXEC SQL LOB CLOSE :Temp_loc;

  /* Free the Temporary LOB: */
  EXEC SQL LOB FREE TEMPORARY :Temp_loc;

  /* Release resources held by the Locators: */
  EXEC SQL FREE :Lob_loc;
  EXEC SQL FREE :Temp_loc;
}

void main()
{
  char *samp = "samp/samp";
  EXEC SQL CONNECT :samp;
  trimTempLOB_proc();
  EXEC SQL ROLLBACK WORK RELEASE;
}
