3
Object Support in Oracle Programmatic Environments

In Oracle8i, you can create object types with SQL data definition language (DDL) commands, and you can manipulate objects with SQL data manipulation language (DML) commands. Object support is built into Oracle's application programming environments:

• SQL

• PL/SQL

• Oracle Call Interface (OCI)

• Pro*C/C++

• Oracle Type Translator (OTT)

• Oracle Objects For OLE (for Visual Basic, Excel, ActiveX, Active Server Pages)

• Java: JDBC, Oracle SQLJ, and JPublisher

SQL

Oracle SQL DDL provides the following support for object types:

• Defining object types, nested tables, and arrays

• Specifying privileges

• Specifying table columns of user-defined types

• Creating object tables

Oracle SQL DML provides the following support for object types:

• Querying and updating objects and collections

• Manipulating REFs

  See Also: For a complete description of Oracle SQL syntax, see Oracle8i SQL Reference.

PL/SQL

PL/SQL allows you to use the SQL features that support object types within functions and procedures.

The parameters and variables of PL/SQL functions and procedures can be of object types.

You can implement the methods associated with object types in PL/SQL. These methods (functions and procedures) reside on the server as part of a user's schema.

See Also: For a complete description of PL/SQL, see PL/SQL User's Guide and Reference.

Oracle Call Interface (OCI)

OCI is a set of C library functions that applications can use to manipulate data and schemas in an Oracle database. OCI supports both traditional 3GL and object-oriented techniques for database access, as explained in the following sections.

An important component of OCI is a set of calls to manage a workspace called the object cache. The object cache is a memory block on the client side that allows programs to store entire objects and to navigate among them without additional round trips to the server.

The object cache is completely under the control and management of the application programs using it. The Oracle server has no access to it. The application programs using it must maintain data coherency with the server and protect the workspace against simultaneous conflicting access.

OCI provides functions to

• Access objects on the server using SQL.

• Access, manipulate and manage objects in the object cache by traversing pointers or REFs.

• Convert Oracle dates, strings and numbers to C data types.

• Manage the size of the object cache's memory.

OCI improves concurrency by allowing individual objects to be locked. It improves performance by supporting complex object retrieval.

OCI developers can use the object type translator to generate the C datatypes corresponding to a Oracle object types.

See Also: Oracle Call Interface Programmer's Guide for more information about using objects with OCI.

Associative Access in OCI Programs

Traditionally, 3GL programs manipulate data stored in a relational database by executing SQL statements and PL/SQL procedures. Data is usually manipulated on the server without incurring the cost of transporting the data to the client(s). OCI supports this associative access to objects by providing an API for executing SQL statements that manipulate object data. Specifically, OCI allows you to:

• Execute SQL statements that manipulate object data and object type schema information

• Pass object instances, object references (REFs), and collections as input variables in SQL statements

• Return object instances, REFs, and collections as output of SQL statement fetches

• Describe the properties of SQL statements that return object instances, REFs, and collections

• Describe and execute PL/SQL procedures or functions with object parameters or results

• Synchronize object and relational functionality through enhanced commit and rollback functions

  See Also: "Associative Access in Pro*C/C++"

Navigational Access in OCI Programs

In the object-oriented programming paradigm, applications model their real-world entities as a set of inter-related objects that form graphs of objects. The relationships between objects are implemented as references. An application processes objects by starting at some initial set of objects, using the references in these initial objects to traverse the remaining objects, and performing computations on each object. OCI provides an API for this style of access to objects, known as navigational access. Specifically, OCI allows you to:

• Cache objects in memory on the client machine

• De-reference an object reference and pin the corresponding object in the object cache. The pinned object is transparently mapped in the host language representation.

• Notify the cache when the pinned object is no longer needed

• Fetch a graph of related objects from the database into the client cache in one call

• Lock objects

• Create, update, and delete objects in the cache

• Flush changes made to objects in the client cache to the database

  See Also: "Navigational Access in Pro*C/C++"

Object Cache

To support high-performance navigational access of objects, OCI runtime provides an object cache for caching objects in memory. The object cache supports references (REFs) to database objects in the object cache, the database objects can be identified (that is, pinned) through their references. Applications do not need to allocate or free memory when database objects are loaded into the cache, because the object cache provides transparent and efficient memory management for database objects.

Also, when database objects are loaded into the cache, they are transparently mapped into the host language representation. For example, in the C programming language, the database object is mapped to its corresponding C structure. The object cache maintains the association between the object copy in the cache and the corresponding database object. Upon transaction commit, changes made to the object copy in the cache are propagated automatically to the database.

The object cache maintains a fast look-up table for mapping REFs to objects. When an application de-references a REF and the corresponding object is not yet cached in the object cache, the object cache automatically sends a request to the server to fetch the object from the database and load it into the object cache. Subsequent de-references of the same REF are faster because they become local cache access and do not incur network round-trips. To notify the object cache that an application is accessing an object in the cache, the application pins the object; when it is finished with the object, it unpins it. The object cache maintains a pin count for each object in the cache. The count is incremented upon a pin call and decremented upon an unpin call. When the pin count goes to zero, it means the object is no longer needed by the application. The object cache uses a least-recently used (LRU) algorithm to manage the size of the cache. When the cache reaches the maximum size, the LRU algorithm frees candidate objects with a pin count of zero.

Building an OCI Program that Manipulates Objects

When you build an OCI program that manipulates objects, you must complete the following general steps:

1. Define the object types that correspond to the application objects.

2. Execute the SQL DDL statements to populate the database with the necessary object types.

3. Represent the object types in the host language format.

   For example, to manipulate instances of the object types in a C program, you must represent these types in the C host language format. You can do this by representing the object types as C structs. You can use a tool provided by Oracle called the Object Type Translator (OTT) to generate the C mapping of the object types. The OTT puts the equivalent C structs in header (*.h) files. You include these *.h files in the *.c files containing the C functions that implement the application.

4. Construct the application executable by compiling and linking the application's *.c files with the OCI library.

   See Also: "OCI Tips and Techniques for Objects"

Pro*C/C++

The Oracle Pro*C/C++ precompiler allows programmers to use user-defined datatypes in C and C++ programs.

Pro*C developers can use the Object Type Translator to map Oracle object types and collections into C datatypes to be used in the Pro*C application.

Pro*C provides compile time type checking of object types and collections and automatic type conversion from database types to C datatypes.

Pro*C includes an EXEC SQL syntax to create and destroy objects and offers two ways to access objects in the server:

• SQL statements and PL/SQL functions or procedures embedded in Pro*C programs.

• An interface to the object cache (described under "Oracle Call Interface (OCI)"), where objects can be accessed by traversing pointers, then modified and updated on the server.

  Additional Information: For a complete description of the Pro*C precompiler, see Pro*C/C++ Precompiler Programmer's Guide.

Associative Access in Pro*C/C++

For background information on associative access, see "Associative Access in OCI Programs".

Pro*C/C++ offers the following capabilities for associative access to objects:

• Support for transient copies of objects allocated in the object cache

• Support for transient copies of objects referenced as input host variables in embedded SQL INSERT, UPDATE, and DELETE statements, or in the WHERE clause of a SELECT statement

• Support for transient copies of objects referenced as output host variables in embedded SQL SELECT and FETCH statements

• Support for ANSI dynamic SQL statements that reference object types through the DESCRIBE statement, to get the object's type and schema information

Navigational Access in Pro*C/C++

For background information on navigational access, see "Navigational Access in OCI Programs".

Pro*C/C++ offers the following capabilities to support a more object-oriented interface to objects:

• Support for de-referencing, pinning, and optionally locking an object in the object cache using an embedded SQL OBJECT DEREF statement

• Allowing a Pro*C/C++ user to inform the object cache when an object has been updated or deleted, or when it is no longer needed, using embedded SQL OBJECT UPDATE, OBJECT DELETE, and OBJECT RELEASE statements

• Support for creating new referenceable objects in the object cache using an embedded SQL OBJECT CREATE statement

• Support for flushing changes made in the object cache to the server with an embedded SQL OBJECT FLUSH statement

Converting Between Oracle Types and C Types

The C representation for objects that is generated by the Oracle Type Translator (OTT) uses OCI types whose internal details are hidden, such as OCIString and OCINumber for scalar attributes. Collection types and object references are similarly represented using OCITable, OCIArray, and OCIRef types. While using these "opaque" types insulates you from changes to their internal formats, using such types in a C or C++ application is cumbersome. Pro*C/C++ provides the following ease-of-use enhancements to simplify use of OCI types in C and C++ applications:

• Object attributes can be retrieved and implicitly converted to C types with the embedded SQL OBJECT GET statement.

• Object attributes can be set and converted from C types with the embedded SQL OBJECT SET statement.

• Collections can be mapped to a host array with the embedded SQL COLLECTION GET statement. Furthermore, if the collection is comprised of scalar types, then the OCI types can be implicitly converted to a compatible C type.

• Host arrays can be used to update the elements of a collection with the embedded SQL COLLECTION SET statement. As with the COLLECTION GET statement, if the collection is comprised of scalar types, C types are implicitly converted to OCI types.

Oracle Type Translator (OTT)

The Oracle type translator (OTT) is a program that automatically generates C language structure declarations corresponding to object types. OTT makes it easier to use the Pro*C precompiler and the OCI server access package.

Additional Information: For complete information about OTT, see Oracle Call Interface Programmer's Guide and Pro*C/C++ Precompiler Programmer's Guide.

Oracle Objects For OLE (for Visual Basic, Excel, ActiveX, Active Server Pages)

Oracle Objects for OLE (OO4O) provides full support for accessing and manipulating instances of REFs, value instances, variable-length arrays (VARRAYs), and nested tables in an Oracle database server.

See Also: OO4O online help for detailed information about using OO4O with Oracle objects.

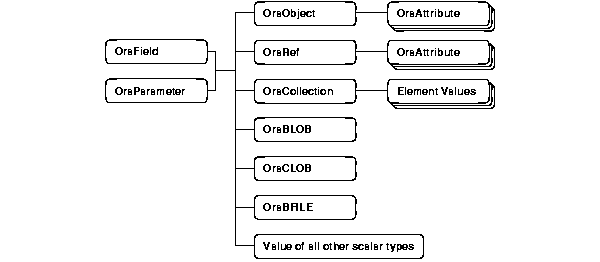

Figure 3-1 illustrates the containment hierarchy for value instances of all types in OO4O.

Figure 3-1 Supported Oracle Datatypes

Text description of the illustration adg81091.gif.

Instances of these types can be fetched from the database or passed as input or output variables to SQL statements and PL/SQL blocks, including stored procedures and functions. All instances are mapped to COM Automation Interfaces that provide methods for dynamic attribute access and manipulation. These interfaces may be obtained from:

• The value property of an OraField object in a Dynaset

• The value property of an OraParameter object used as an input or an output parameter in SQL Statements or PL/SQL blocks

• An attribute of an object (REF)

• An element in a collection (varray or a nested table)

Representing Objects in Visual Basic (OraObject)

The OraObject interface is a representation of an Oracle embedded object or a value instance. It contains a collection interface (OraAttributes) for accessing and manipulating (updating and inserting) individual attributes of a value instance. Individual attributes of an OraAttributes collection interface can be accessed by using a subscript or the name of the attribute.

The following Visual Basic example illustrates how to access attributes of the Address object in the person_tab table:

Dim Address OraObject
Set Person = OraDatabase.CreateDynaset("select * from person_tab", 0&)
Set Address = Person.Fields("Addr").Value
msgbox Address.Zip
msgbox.Address.City

Representing REFs in Visual Basic (OraRef)

The OraRef interface represents an Oracle object reference (REF) as well as referenceable objects in client applications. The object attributes are accessed in the same manner as attributes of an object represented by the OraObject interface. OraRef is derived from an OraObject interface via the containment mechanism in COM. REF objects are updated and deleted independent of the context they originated from, such as Dynasets. The OraRef interface also encapsulates the functionality for navigating through graphs of objects utilizing the Complex Object Retrieval Capability (COR) in OCI, described in "Pre-Fetching Related Objects (Complex Object Retrieval)".

Representing VARRAYs and Tables in Visual Basic (OraCollection)

The OraCollection interface provides methods for accessing and manipulating Oracle collection types, namely variable-length arrays (VARRAYs) and nested tables in OO4O. Elements contained in a collection are accessed by subscripts.

The following Visual Basic example illustrates how to access attributes of the EnameList object from the department table:

Dim EnameList OraCollection
Set Person = OraDatabase.CreateDynaset("select * from department", 0&)
set EnameList = Department.Fields("Enames").Value
'access all elements of the EnameList VArray
for I=1 to I=EnameList.Size
   msgbox EnameList(I)
Next I

Java: JDBC, Oracle SQLJ, and JPublisher

Java has emerged as a powerful, modern object-oriented language that provides developers with a simple, efficient, portable, and safe application development platform. Oracle provides two ways to integrate Oracle object features with Java: JDBC and Oracle SQLJ. The following sections provide more information about these environments.

JDBC Access to Oracle Object Data

JDBC (Java Database Connectivity) is a set of Java interfaces to the Oracle server. Oracle provides tight integration between objects and JDBC. You can map SQL types to Java classes with considerable flexibility.

Oracle's JDBC:

• Allows access to objects and collection types (defined in the database) in Java programs through dynamic SQL.

• Translates types defined in the database into Java classes through default or customizable mappings.

Version 2.0 of the JDBC specification supports Object-Relational constructs such as user-defined (Object) types. JDBC materializes Oracle objects as instances of particular Java classes. Using JDBC to access Oracle objects involves creating the Java classes for the Oracle objects and populating these classes. You can either:

• Let JDBC materialize the object as a STRUCT. In this case, JDBC creates the classes for the attributes and populates them for you.

• Personally specify the mappings between Oracle objects and Java classes; that is, customize your Java classes for object data. The driver then populates the customized Java classes that you specify, which imposes a set of constraints on the Java classes. To satisfy these constraints, you can choose to define your classes according to either the SQLData interface or the CustomDatum interface.

  Additional Information: For complete information about JDBC, see the Oracle8i JDBC Developer's Guide and Reference .

SQLJ Access to Oracle Object Data

SQLJ provides access to server objects using SQL statements embedded in the Java code:

• You can use user-defined types in Java programs.

• You can use JPublisher to map Oracle object and collection types into Java classes to be used in the application.

• The object types and collections in the SQL statements are checked at compile time.

  Additional Information: For complete information about SQLJ, see the Oracle8i Java Developer's Guide .

Choosing a Data Mapping Strategy

Oracle SQLJ supports either strongly typed or weakly typed Java representations of object types, reference types (REFs), and collection types (VARRAYs and nested tables) to be used in iterators or host expressions.

Strongly typed representations use a custom Java class that corresponds to a particular object type, reference type, or collection type and must implement the interface oracle.sql.CustomDatum. The Oracle JPublisher utility can automatically generate such custom Java classes.

Weakly typed representations use the class oracle.sql.STRUCT (for objects), oracle.sql.REF (for references), or oracle.sql.ARRAY (for collections).

See Also: "Manipulating Objects Through Java" for sample code showing both techniques.:

Using JPublisher to Create Java Classes for JDBC and SQLJ Programs

Oracle lets you map Oracle object types, reference types, and collection types to Java classes and preserve all the benefits of strong typing. You can:

• Use JPublisher to automatically generate custom Java classes and use those classes without any change.

• Subclass the classes produced by JPublisher to create your own specialized Java classes.

• Manually code custom Java classes without using JPublisher, provided that the classes meet the requirements stated in the Oracle8i SQLJ Developer's Guide and Reference .

We recommend that you use JPublisher, and subclass when the generated classes do not do everything you need.

What JPublisher Produces

When you run JPublisher for a user-defined object type, it automatically creates the following:

• A custom object class to act as a type definition to correspond to your Oracle object type

  This class includes getter and setter methods for each attribute. The method names are of the form getFoo() and setFoo() for attribute foo.

  Also, you can optionally instruct JPublisher to generate wrapper methods in your class that invoke the associated Oracle object methods executing in the server.

• A related custom reference class for object references to your Oracle object type

  This class includes a getValue() method that returns an instance of your custom object class, and a setValue() method that updates an object value in the database, taking as input an instance of the custom object class.

When you run JPublisher for a user-defined collection type, it automatically creates the following:

• A custom collection class to act as a type definition to correspond to your Oracle collection type

  This class includes overloaded getArray() and setArray() methods to retrieve or update a collection as a whole, a getElement() method and setElement() method to retrieve or update individual elements of a collection, and additional utility methods.

JPublisher-produced custom Java classes in any of these categories implement the CustomDatum interface, the CustomDatumFactory interface, and the getFactory() method.

See Also: The Oracle8i JPublisher User's Guide for more information about using JPublisher.
