2
The Object-Relational Schema

The object-relational implementation of Oracle Spatial consists of a set of object data types, an index method type, and operators on these types. A geometry is stored as an object, in a single row, in a column of type SDO_GEOMETRY. Spatial index creation and maintenance is done using basic DDL (CREATE, ALTER, DROP) and DML (INSERT, UPDATE, DELETE) statements.

2.1 Simple Example: Inserting, Indexing, and Querying Spatial Data

This section presents a simple example of creating a spatial table, inserting data, creating the spatial index, and performing spatial queries. It refers to concepts that were explained in Chapter 1 and that will be explained in other sections of this chapter.

The scenario is a soft drink manufacturer that has identified geographical areas of marketing interest for several products (colas). The colas could be those produced by the company or by its competitors, or some combination. Each area of interest could represent any user-defined criterion: for example, an area where that cola has the majority market share, or where the cola is under competitive pressure, or where the cola is believed to have significant growth potential. Each area could be a neighborhood in a city, or a part of a state, province, or country.

Figure 2-1 shows the areas of interest for four colas.

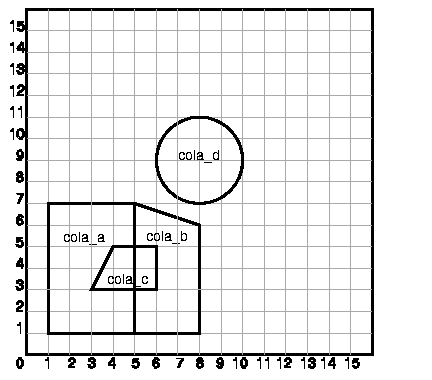

Figure 2-1 Areas of Interest for Simple Example


Illustration of the areas of interest for the Oracle Spatial examples in this section and in other sections in the manual.

Example 2-1 performs the following operations:

Many concepts and techniques in Example 2-1 are explained in detail in other sections of this chapter.

Example 2-1 Simple Example: Inserting, Indexing, and Querying Spatial Data

-- Create a table for cola (soft drink) markets in a
-- given geography (such as city or state).
-- Each row will be an area of interest for a specific
-- cola (for example, where the cola is most preferred
-- by residents, where the manufacturer believes the
-- cola has growth potential, and so on).

CREATE TABLE cola_markets (
  mkt_id NUMBER PRIMARY KEY,
  name VARCHAR2(32),
  shape MDSYS.SDO_GEOMETRY);

-- The next INSERT statement creates an area of interest for
-- Cola A. This area happens to be a rectangle.
-- The area could represent any user-defined criterion: for
-- example, where Cola A is the preferred drink, where
-- Cola A is under competitive pressure, where Cola A
-- has strong growth potential, and so on.

INSERT INTO cola_markets VALUES(
  1,
  'cola_a',
  MDSYS.SDO_GEOMETRY(
    2003,  -- 2-dimensional polygon
    NULL,
    NULL,
    MDSYS.SDO_ELEM_INFO_ARRAY(1,1003,3), -- one rectangle (1003 = exterior)
    MDSYS.SDO_ORDINATE_ARRAY(1,1, 5,7) -- only 2 points needed to
          -- define rectangle (lower left and upper right)
  )
);

-- The next two INSERT statements create areas of interest for
-- Cola B and Cola C. These areas are simple polygons (but not
-- rectangles).

INSERT INTO cola_markets VALUES(
  2,
  'cola_b',
  MDSYS.SDO_GEOMETRY(
    2003,  -- 2-dimensional polygon
    NULL,
    NULL,
    MDSYS.SDO_ELEM_INFO_ARRAY(1,1003,1), -- one polygon (exterior polygon ring)
    MDSYS.SDO_ORDINATE_ARRAY(5,1, 8,1, 8,6, 5,7, 5,1)
  )
);

INSERT INTO cola_markets VALUES(
  3,
  'cola_c',
  MDSYS.SDO_GEOMETRY(
    2003,  -- 2-dimensional polygon
    NULL,
    NULL,
    MDSYS.SDO_ELEM_INFO_ARRAY(1,1003,1), -- one polygon (exterior polygon ring)
    MDSYS.SDO_ORDINATE_ARRAY(3,3, 6,3, 6,5, 4,5, 3,3)
  )
);

-- Now insert an area of interest for Cola D. This is a
-- circle with a radius of 2. It is completely outside the
-- first three areas of interest.

INSERT INTO cola_markets VALUES(
  4,
  'cola_d',
  MDSYS.SDO_GEOMETRY(
    2003,  -- 2-dimensional polygon
    NULL,
    NULL,
    MDSYS.SDO_ELEM_INFO_ARRAY(1,1003,4), -- one circle
    MDSYS.SDO_ORDINATE_ARRAY(8,7, 10,9, 8,11)
  )
);

---------------------------------------------------------------------------
-- UPDATE METADATA VIEW --
---------------------------------------------------------------------------
-- Update the USER_SDO_GEOM_METADATA view. This is required
-- before the Spatial index can be created. Do this only once for each
-- layer (that is, table-column combination; here: COLA_MARKETS and SHAPE).

INSERT INTO USER_SDO_GEOM_METADATA
  VALUES (
  'cola_markets',
  'shape',
  MDSYS.SDO_DIM_ARRAY(   -- 20X20 grid, virtually zero tolerance
    MDSYS.SDO_DIM_ELEMENT('X', 0, 20, 0.005),
    MDSYS.SDO_DIM_ELEMENT('Y', 0, 20, 0.005)
     ),
  NULL   -- SRID
);

-------------------------------------------------------------------
-- CREATE THE SPATIAL INDEX --
-------------------------------------------------------------------
CREATE INDEX cola_spatial_idx
ON cola_markets(shape)
INDEXTYPE IS MDSYS.SPATIAL_INDEX
PARAMETERS('SDO_LEVEL = 8');

-------------------------------------------------------------------
-- PERFORM SOME SPATIAL QUERIES --
-------------------------------------------------------------------
-- Return the topological intersection of two geometries.
SELECT SDO_GEOM.SDO_INTERSECTION(c_a.shape, m.diminfo, c_c.shape, m.diminfo)
  FROM cola_markets c_a, cola_markets c_c, user_sdo_geom_metadata m
  WHERE m.table_name = 'COLA_MARKETS' AND m.column_name = 'SHAPE'
  AND c_a.name = 'cola_a' AND c_c.name = 'cola_c';

-- Do two geometries have any spatial relationship?
SELECT SDO_GEOM.RELATE(c_b.shape, m.diminfo, 'anyinteract',
    c_d.shape, m.diminfo)
  FROM cola_markets c_b, cola_markets c_d, user_sdo_geom_metadata m
  WHERE m.table_name = 'COLA_MARKETS' AND m.column_name = 'SHAPE'
  AND c_b.name = 'cola_b' AND c_d.name = 'cola_d';

-- Return the areas of all cola markets.
SELECT c.name, SDO_GEOM.SDO_AREA(c.shape, m.diminfo)
  FROM cola_markets c, user_sdo_geom_metadata m
  WHERE m.table_name = 'COLA_MARKETS' AND m.column_name = 'SHAPE';

-- Return the area of just cola_a.
SELECT c.name, SDO_GEOM.SDO_AREA(c.shape, m.diminfo)
  FROM cola_markets c, user_sdo_geom_metadata m
  WHERE m.table_name = 'COLA_MARKETS' AND m.column_name = 'SHAPE'
  AND c.name = 'cola_a';

-- Return the distance between two geometries.
SELECT SDO_GEOM.SDO_DISTANCE(c_b.shape, m.diminfo, c_d.shape, m.diminfo)
  FROM cola_markets c_b, cola_markets c_d, user_sdo_geom_metadata m
  WHERE m.table_name = 'COLA_MARKETS' AND m.column_name = 'SHAPE'
  AND c_b.name = 'cola_b' AND c_d.name = 'cola_d';

-- Is a geometry valid?
SELECT c.name, SDO_GEOM.VALIDATE_GEOMETRY(c.shape, m.diminfo)
  FROM cola_markets c, user_sdo_geom_metadata m
  WHERE m.table_name = 'COLA_MARKETS' AND m.column_name = 'SHAPE'
  AND c.name = 'cola_c';

-- Is a layer valid? (First, create the results table.)
CREATE TABLE validation_results (mkt_id number, result varchar2(10));
EXECUTE SDO_GEOM.VALIDATE_LAYER('COLA_MARKETS', 'SHAPE', 'MKT_ID',
  'VALIDATION_RESULTS');
SELECT * from validation_results;

2.2 SDO_GEOMETRY Object Type

In the Spatial object-relational model, the geometric description of a spatial object is stored in a single row, in a single column of object type SDO_GEOMETRY in a user-defined table. Any table that has a column of type SDO_GEOMETRY must have another column, or set of columns, that defines a unique primary key for that table. Tables of this sort are sometimes referred to as geometry tables.

Oracle Spatial defines the object type SDO_GEOMETRY as:

CREATE TYPE sdo_geometry AS OBJECT (
 SDO_GTYPE NUMBER,
 SDO_SRID NUMBER,
 SDO_POINT SDO_POINT_TYPE,
 SDO_ELEM_INFO MDSYS.SDO_ELEM_INFO_ARRAY,
 SDO_ORDINATES MDSYS.SDO_ORDINATE_ARRAY);

The sections that follow describe the semantics of each SDO_GEOMETRY attribute, and then describe some usage considerations (Section 2.2.6).

2.2.1 SDO_GTYPE

SDO_GTYPE indicates the type of the geometry. Valid geometry types correspond to those specified in the Geometry Object Model for the OGIS Simple Features for SQL specification (with the exception of Surfaces.) The numeric values differ from those given in the OGIS specification, but there is a direct correspondence between the names and semantics where applicable. Table 2-1 shows the valid SDO_GTYPE values.

Table 2-1 Valid SDO_GTYPE Values
Value  Geometry Type  Description

d000

UNKNOWN_GEOMETRY

Spatial ignores this geometry.

d001

POINT

Geometry contains one point.

d002

LINESTRING

Geometry contains one line string.

d003

POLYGON

Geometry contains one polygon with or without holes.Foot 1

d004

COLLECTION

Geometry is a heterogeneous collection of elements.Foot 2

d005

MULTIPOINT

Geometry has multiple points.

d006

MULTILINESTRING

Geometry has multiple line strings.

d007

MULTIPOLYGON

Geometry has multiple, disjoint polygons (more than one exterior boundary).
Foot 1 For a polygon with holes, enter the exterior boundary first, followed by any interior boundaries.
Foot 2 All polygons in the collection must be disjoint.

The d in the Value column of Table 2-1 is the number of dimensions: 2, 3, or 4. For example, a value of 2003 indicates a 2-dimensional polygon.

Note:

The pre-release 8.1.6 format of a 1-digit value is still supported. If a 1-digit value is used, however, Oracle Spatial determines the number of dimensions and stores the appropriate 4-digit value in the DIMINFO column of the metadata views described in Section 2.4.

The number of dimensions reflects the number of ordinates used to represent each vertex (for example, X,Y for 2-dimensional objects). Points and lines are considered 2-dimensional objects. (However, see Section E.2 for dimension information about LRS points.)

In any given layer (column), all geometries must have the same number of dimensions. For example, you cannot mix 2-dimensional and 3-dimensional data in the same layer.

Values d008-d099 are reserved for future use.

2.2.2 SDO_SRID

SDO_SRID can be used to identify a coordinate system (spatial reference system) to be associated with the geometry. If SDO_SRID is null, no coordinate system is associated with the geometry. If SDO_SRID is not null, it must contain a value from the SRID column of the MDSYS.CS_SRS table (described in Section D.3.1), and this value must be inserted into the SRID column of the USER_SDO_GEOM_METADATA view (described in Section 2.4).

All geometries in a geometry column must have the same SDO_SRID value.

For information about coordinate systems, see Appendix D.

2.2.3 SDO_POINT

SDO_POINT is defined using an object type with attributes X, Y, and Z, all of type NUMBER. If the SDO_ELEM_INFO and SDO_ORDINATES arrays are both null, and the SDO_POINT attribute is non-null, then the X and Y values are considered to be the coordinates for a point geometry. Otherwise the SDO_POINT attribute is ignored by Spatial. You should store point geometries in the SDO_POINT attribute for optimal storage; and if you have only point geometries in a layer, it is strongly recommended that you store the point geometries in the SDO_POINT attribute.

Note:

Do not use the SDO_POINT attribute in defining a linear referencing system (LRS) point. For information about LRS, see Appendix E.

2.2.4 SDO_ELEM_INFO

SDO_ELEM_INFO is defined using a varying length array of numbers. This attribute lets you know how to interpret the ordinates stored in the SDO_ORDINATES attribute (described in Section 2.2.5).

Each triplet set of numbers is interpreted as follows:

If a geometry consists of more than one element, then the last ordinate for an element is always one less than the starting offset for the next element. The last element in the geometry is described by the ordinates from its starting offset to the end of the SDO_ORDINATES varying length array.

For compound elements (SDO_ETYPE values 4 and 5), a set of n triplets (one per subelement) is used to describe the element. It is important to remember that subelements of a compound element are contiguous. The last point of a subelement is the first point of the next subelement. For subelements 1 through n-1, the end point of one subelement is the same as the starting point of the next subelement. The starting point for subelements 2...n-2 is the same as the end point of subelement 1...n-1. The last ordinate of subelement n is either the starting offset minus 1 of the next element in the geometry, or the last ordinate in the SDO_ORDINATES varying length array.

The current size of a varying length array can be determined by using the function varray_variable.Count in PL/SQL or OCIColSize in the Oracle Call Interface (OCI).

The semantics of each SDO_ETYPE element and the relationship between the SDO_ELEM_INFO and SDO_ORDINATES varying length arrays for each of these SDO_ETYPE elements are given in Table 2-2.

Table 2-2 Values and Semantics in SDO_ELEM_INFO
SDO_ETYPE  SDO_INTERPRETATION  Meaning

0

0

Unsupported element type. Ignored by the Spatial functions and procedures.

1

1

Point type.

1

n > 1

Point cluster with n points.

2

1

Line string whose vertices are connected by straight line segments.

2

2

Line string made up of a connected sequence of circular arcs.

Each circular arc is described using three coordinates: the arc's starting point, any point on the arc, and the arc's end point. The coordinates for a point designating the end of one arc and the start of the next arc are not repeated. For example, five coordinates are used to describe a line string made up of two connected circular arcs. Points 1, 2, and 3 define the first arc, and points 3, 4, and 5 define the second arc, where point 3 is only stored once.

3

1

Simple polygon whose vertices are connected by straight line segments. Note that you must specify a point for each vertex, and the last point specified must be identical to the first (to close the polygon). For example, for a 4-sided polygon, specify 5 points, with point 5 the same as point 1.

3

2

Polygon made up of a connected sequence of circular arcs that closes on itself. The end point of the last arc is the same as the start point of the first arc.

Each circular arc is described using three coordinates: the arc's start point, any point on the arc, and the arc's end point. The coordinates for a point designating the end of one arc and the start of the next arc are not repeated. For example, five coordinates are used to describe a polygon made up of two connected circular arcs. Points 1, 2, and 3 define the first arc, and points 3, 4, and 5 define the second arc. The coordinates for points 1 and 5 must be the same, and point 3 is not repeated.

3

3

Rectangle type. A bounding rectangle such that only two points, the lower-left and the upper-right, are required to describe it.

3

4

Circle type. Described by three points, all on the circumference of the circle.

4

n > 1

Line string with some vertices connected by straight line segments and some by circular arcs. The value, n, in the Interpretation column specifies the number of contiguous subelements that make up the line string.

The next n triplets in the SDO_ELEM_INFO array describe each of these subelements. The subelements can only be of SDO_ETYPE 2. The last point of a subelement is the first point of the next subelement, and must not be repeated.

See Section 2.3 and Figure 2-4 for an example of a geometry using this type.

5

n > 1

Compound polygon with some vertices connected by straight line segments and some by circular arcs. The value, n, in the Interpretation column specifies the number of contiguous subelements that make up the polygon.

The next n triplets in the SDO_ELEM_INFO array describe each of these subelements. The subelements can only be of SDO_ETYPE 2. The end point of a subelement is the start point of the next subelement, and it must not be repeated. The start and end points of the polygon must be the same.

See Section 2.3.4 and Figure 2-5 for an example of a geometry using this type.

2.2.5 SDO_ORDINATES

SDO_ORDINATES is defined using a varying length array (1048576) of NUMBER type that stores the coordinate values that make up the boundary of a spatial object. This array must always be used in conjunction with the SDO_ELEM_INFO varying length array. The values in the array are ordered by dimension. For example, a polygon whose boundary has four 2-dimensional points is stored as {X1, Y1, X2, Y2, X3, Y3, X4, Y4, X1, Y1}. If the points are 3-dimensional, then they are stored as {X1, Y1, Z1, X2, Y2, Z2, X3, Y3, Z3, X4, Y4, Z4, X1, Y1, Z1}. Spatial index creation, operators, and functions ignore the Z values because this release of the product supports only 2-dimensional spatial objects. The number of dimensions associated with each point is stored as metadata in the xxx_SDO_GEOM_METADATA views, described in Section 2.4.

The values in the SDO_ORDINATES array must all be valid and non-null. There are no special values used to delimit elements in a multielement geometry. The start and end points for the sequence describing a specific element are determined by the STARTING_OFFSET values for that element and the next element in the SDO_ELEM_INFO array as explained previously. The offset values start at 1. SDO_ORDINATES(1) is the first ordinate of the first point of the first element.

2.2.6 Usage Considerations

You should use the SDO_GTYPE values as shown in Table 2-1; however, Spatial does not check or enforce all geometry consistency constraints. Spatial does check the following:

The SDO_GEOM.VALIDATE_GEOMETRY function can be used to evaluate the consistency of a single geometry object or all the instances of SDO_GEOMETRY in a specified feature table.

2.3 Geometry Examples Using the Object-Relational Model

This section contains examples of several geometry types.

2.3.1 Rectangle

Figure 2-2 illustrates a rectangle.

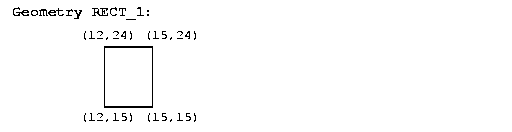

Figure 2-2 Rectangle


Illustration of a rectangle.

In the SDO_GEOMETRY definition of the geometry illustrated in Figure 2-2:

2.3.2 Polygon with a Hole

Figure 2-3 illustrates a polygon consisting of two elements: an exterior polygon ring and an interior polygon ring. The inner element in this example is treated as a void (a hole).

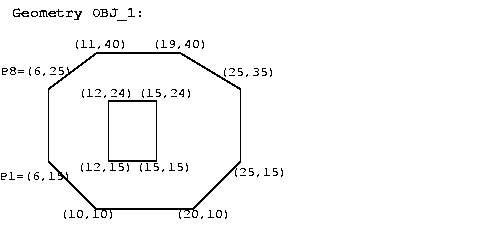

Figure 2-3 Geometry with a Hole


Illustration of a geometry with a hole.

In the SDO_GEOMETRY definition of the geometry illustrated in Figure 2-3:

An example of such a "polygon with a hole" might be a land mass (such as a country or an island) with a lake inside it. Of course, an actual land mass might have many such interior polygons: each one would require a triplet element in SDO_ELEM_INFO, plus the necessary ordinate specification.

Exterior and interior rings cannot be nested. For example, if a country has a lake and there is an island in the lake (and perhaps a lake on the island), a separate polygon must be defined for the island; the island cannot be defined as an interior polygon ring within the interior polygon ring of the lake.

In a multipolygon (polygon collection), rings must be grouped by polygon, and the first ring of each polygon must be the exterior ring. For example, consider a polygon collection that contains two polygons (A and B):

The elements in SDO_ELEM_INFO and SDO_ORDINATES must be in one of the following orders (depending on whether you specify Polygon A or Polygon B first):

2.3.3 Compound Element

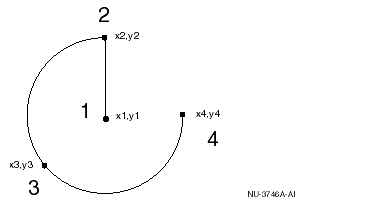

Figure 2-4 illustrates a crescent-shaped object represented as a compound line string made up of one straight line segment and one circular arc. Four points are required to represent this shape. Points 1 and 2 describe the straight line segment and points 2, 3, and 4 describe the circular arc. The SDO_ELEM_INFO array contains 3 triplets for this compound line string. These are {(1,4,2), (1,2,1), (3,2,2)}. The SDO_ORDINATES array contains (X1,Y1, X2, Y2, X3, Y3, X4,Y4).

Figure 2-4 Compound Element


Illustration of a compound element.

The first triplet indicates that this element is a compound line string made up of two line strings, which are described with the next two triplets.

The second triplet indicates that the line string is made up of straight line segments and that the ordinates for this line string start at offset 1. The end point of this line string is determined by the starting offset of the second line string, 3 in this instance. Assuming the vertices are 2-dimensional, the coordinates for the end point of the first line string are at ordinates 3 and 4.

The third triplet indicates that the second line string is made up of circular arcs with ordinates starting at offset 3. The end point of this line string is determined by the starting offset of the next element or the current length of the SDO_ORDINATES array, if this is the last element.

2.3.4 Compound Polygon

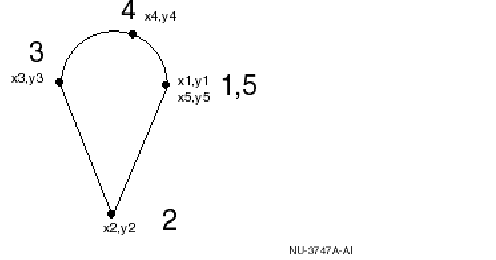

Figure 2-5 illustrates an ice cream cone-shaped object represented as a compound polygon made up of one straight line segment and one circular arc. Five points are required to represent this shape. Points 1, 2, and 3 describe one acute angle-shaped line string, and points 3, 4, and 5 describe the circular arc. Points 1 and 5 are the same point. The SDO_ELEM_INFO array contains three triplets for this compound line string. These triplets are {(1,1005,2), (1,2,1), (5,2,2)}.

Figure 2-5 Compound Polygon


Illustration of a compound polygon.

The first triplet indicates that this element is a compound line string made up of two line strings, which are described using the next two triplets.

The second triplet indicates that the line string is made up of straight line segments and that the ordinates for this line string start at offset 1. The end point of this line string is determined by the starting offset of the second line string, 5 in this instance. Assuming the vertices are 2-dimensional, the coordinates for the end point of the first line string are at ordinates 5 and 6.

The third triplet indicates that the second line string is made up of circular arcs with ordinates starting at offset 5. The end point of this line string is determined by the starting offset of the next element or the current length of the SDO_ORDINATES array, if this is the last element.

2.4 Geometry Metadata Structure

The geometry metadata describing the dimensions, lower and upper bounds, and tolerance in each dimension is stored in a global table owned by MDSYS (which users should never directly update). Each Spatial user has the following views available in the schema associated with that user:

Spatial users are responsible for populating these views. For each spatial column, you must insert an appropriate row into the USER_SDO_GEOM_METADATA view. Oracle Spatial ensures that the other two views (ALL_SDO_GEOM_METADATA and DBA_SDO_GEOM_METADATA) are also updated to reflect the rows that you insert into USER_SDO_GEOM_METADATA.

Note:

These views were new for release 8.1.6. If you are migrating from an earlier release of Spatial, see Appendix B.

Each metadata view has the following definition:

(
  TABLE_NAME   VARCHAR2(32),
  COLUMN_NAME  VARCHAR2(32),
  DIMINFO      MDSYS.SDO_DIM_ARRAY,
  SRID         NUMBER
);

In addition, the ALL_SDO_GEOM_METADATA and DBA_SDO_GEOM_METADATA views have an OWNER column identifying the schema that owns the table specified in TABLE_NAME.

2.4.1 TABLE_NAME

The TABLE_NAME column contains the name of a feature table, such as ROADS or PARKS, that has a column of type SDO_GEOMETRY.

2.4.2 COLUMN_NAME

The COLUMN_NAME column contains the name of the column of type SDO_GEOMETRY. For the tables ROADS and PARKS, this column is called THEGEOMETRY, and therefore the xxx_SDO_GEOM_METADATA views should contain rows with values (ROADS, THEGEOMETRY, SOMEDIMINFO1, NULL) and (PARKS, THEGEOMETRY, SOMEDIMINFO2, NULL).

2.4.3 DIMINFO

The DIMINFO column is a varying length array of an object type, ordered by dimension, and has one entry per dimension. The SDO_DIM_ARRAY type is defined as follows:

Create Type SDO_DIM_ARRAY as VARRAY(4) of SDO_DIM_ELEMENT;

The SDO_DIM_ELEMENT type is defined as:

Create Type SDO_DIM_ELEMENT as OBJECT (
  SDO_DIMNAME VARCHAR2(64),
  SDO_LB NUMBER,
  SDO_UB NUMBER,
  SDO_TOLERANCE NUMBER);

The SDO_DIM_ARRAY instance is of size n if there are n dimensions. That is, DIMINFO contains 2 SDO_DIM_ELEMENT instances for 2-dimensional geometries, 3 instances for 3-dimensional geometries, and 4 instances for 4-dimensional geometries. Each SDO_DIM_ELEMENT instance in the array must have valid (not null) values for the SDO_LB, SDO_UB, and SDO_TOLERANCE attributes.

Note:

The number of dimensions reflected in the DIMINFO information must match the number of dimensions of each geometry object in the layer.

Spatial assumes that the varying length array is ordered by dimension, and therefore, in the ROADS and PARKS tables, SomeDimInfo1 is the SDO_DIM_ELEMENT for the first dimension and SomeDimInfo2 is the SDO_DIM_ELEMENT for the second dimension. It is imperative that the DIMINFO varying length array is ordered by dimension in the same way the ordinates for the points in SDO_ORDINATES varying length array are ordered. That is, if the SDO_ORDINATES varying length array contains {X1, Y1, ..., Xn, Yn}, then SomeDimInfo1 must define the X dimension and SomeDimInfo2 must define the Y dimension.

Section 3.1.2 contains examples that show the use of the SDO_GEOMETRY and SDO_DIM_ARRAY types. These examples demonstrate how various geometry objects are represented, and how a feature table and the USER_SDO_GEOM_METADATA view are populated with the data for those objects.

2.4.4 SRID

The SRID column should contain either of the following: the SRID value for the coordinate system (see Appendix D) for all geometries in the column, or NULL if no specific coordinate system should be associated with the geometries.

2.5 Spatial Index-Related Structure

This section describes the structure of the tables containing the spatial index data and metadata. Concepts and usage notes for spatial indexing are explained in Section 1.7. The spatial index data and metadata are stored in tables that are created and maintained by the Spatial indexing routines. These tables are created in the schema of the owner of the feature (underlying) table that has a spatial index created on a column of type SDO_GEOMETRY.

2.5.1 Spatial Index Views

There are three metadata views per schema (user). These views are read-only to users; they are created and maintained by the Spatial indexing routines.

The USER_SDO_INDEX_METADATA, ALL_SDO_INDEX_METADATA, and DBA_SDO_INDEX_METADATA views contain the same columns, as shown Table 2-3. (The columns are listed in their order in the view definition.)

Table 2-3 Columns in the xxx_SDO_INDEX_METADATA Views
Column Name  Data Type  Purpose

SDO_INDEX_OWNER

VARCHAR2

The owner of the index.

SDO_INDEX_TYPE

VARCHAR2

Contains QTREE (for a quadtree index) or RTREE (for an R-tree index).

SDO_INDEX_NAME

VARCHAR2

The name of the index.

SDO_INDEX_TABLE

VARCHAR2

Name of the spatial index table (described in Section 2.5.2).

SDO_INDEX_PRIMARY

NUMBER

Indicates if this is a primary or secondary index. 1 = primary, 2 = secondary.

SDO_TSNAME

VARCHAR2

The schema name of the SDO_INDEX_TABLE.

SDO_COLUMN_NAME

VARCHAR2

The column name on which this index is built.

SDO_RTREE_HEIGHT

NUMBER

Height of the R-tree (R-tree index).

SDO_RTREE_NUM_NODES

NUMBER

Number of nodes in the R-tree (R-tree index).

SDO_RTREE_DIMENSIONALITY

NUMBER

Number of dimensions indexed (R-tree index).

SDO_RTREE_FANOUT

NUMBER

Maximum number of children in each R-tree node (R-tree index).

SDO_RTREE_ROOT

VARCHAR2

Rowid corresponding to the root node of the R-tree in the index table (R-tree index).

SDO_RTREE_SEQ_NAME

VARCHAR2

Sequence name associated with the R-tree (R-tree index).

SDO_LEVEL

NUMBER

The fixed tiling level at which to tile all objects in the geometry column (quadtree index).

SDO_NUMTILES

NUMBER

Suggested number of tiles per object that should be used to approximate the shape (quadtree index).

SDO_MAXLEVEL

NUMBER

The maximum level for any tile for any object (quadtree index). It will always be greater than the SDO_LEVEL value.

SDO_COMMIT_INTERVAL

NUMBER

The number of geometries (rows) to process, during index creation, before committing the insertion of spatial index entries into the SDOINDEX table. See Section A.1.4 for more information about SDO_COMMIT_INTERVAL.

SDO_FIXED_META

RAW

If applicable, this column contains the metadata portion of the SDO_GROUPCODE or SDO_CODE for a fixed-level index.

SDO_TABLESPACE

VARCHAR2

Same as in the SQL CREATE TABLE statement. Tablespace in which to create the SDOINDEX table.

SDO_INITIAL_EXTENT

NUMBER

Same as in SQL CREATE TABLE statement.

SDO_NEXT_EXTENT

NUMBER

Same as in SQL CREATE TABLE statement.

SDO_PCTINCREASE

NUMBER

Same as in SQL CREATE TABLE statement.

SDO_MIN_EXTENTS

NUMBER

Same as in SQL CREATE TABLE statement.

SDO_MAX_EXTENTS

NUMBER

Same as in SQL CREATE TABLE statement.

2.5.2 Spatial Index Table Definition

Each quadtree spatial index table (each SDO_INDEX_TABLE entry as described in Table 2-3 in Section 2.5.1) contains the columns shown in Table 2-4.

Table 2-4 Columns in a Spatial Index Data Table
Column Name  Data Type  Purpose

SDO_CODE

RAW

Index entry for the object in the row identified by SDO_ROWID.

SDO_ROWID

ROWID

Row ID of a row in a feature table containing the indexed object.

SDO_STATUS

VARCHAR2

Contains I if the tile is inside the geometry, or contains B if the tile is on the boundary of the geometry.

SDO_GROUPCODE

RAW

Index entry at level SDO_LEVEL (hybrid indexes only).

The SDO_CODE, SDO_ROWID, and SDO_STATUS columns are always present. The SDO_GROUPCODE column is present only when the selected index type is HYBRID.

2.5.3 R-Tree Index Sequence Object

Each R-tree spatial index table has an associated sequence object (SDO_RTREE_SEQ_NAME in the USER_SDO_INDEX_METADATA view, described in Table 2-3 in Section 2.5.1). The sequence is used to ensure that simultaneous updates can be performed to the index by multiple concurrent users.

The sequence name is the index table name with the letter S as a suffix. For example, if the index table name is E1_RT$, the sequence name is E1_RT$S.

Go to previous page Go to next page
Oracle
Copyright © 1996-2000, Oracle Corporation.
All Rights Reserved.

Library
Product
Contents
Index
