Cluster Setting

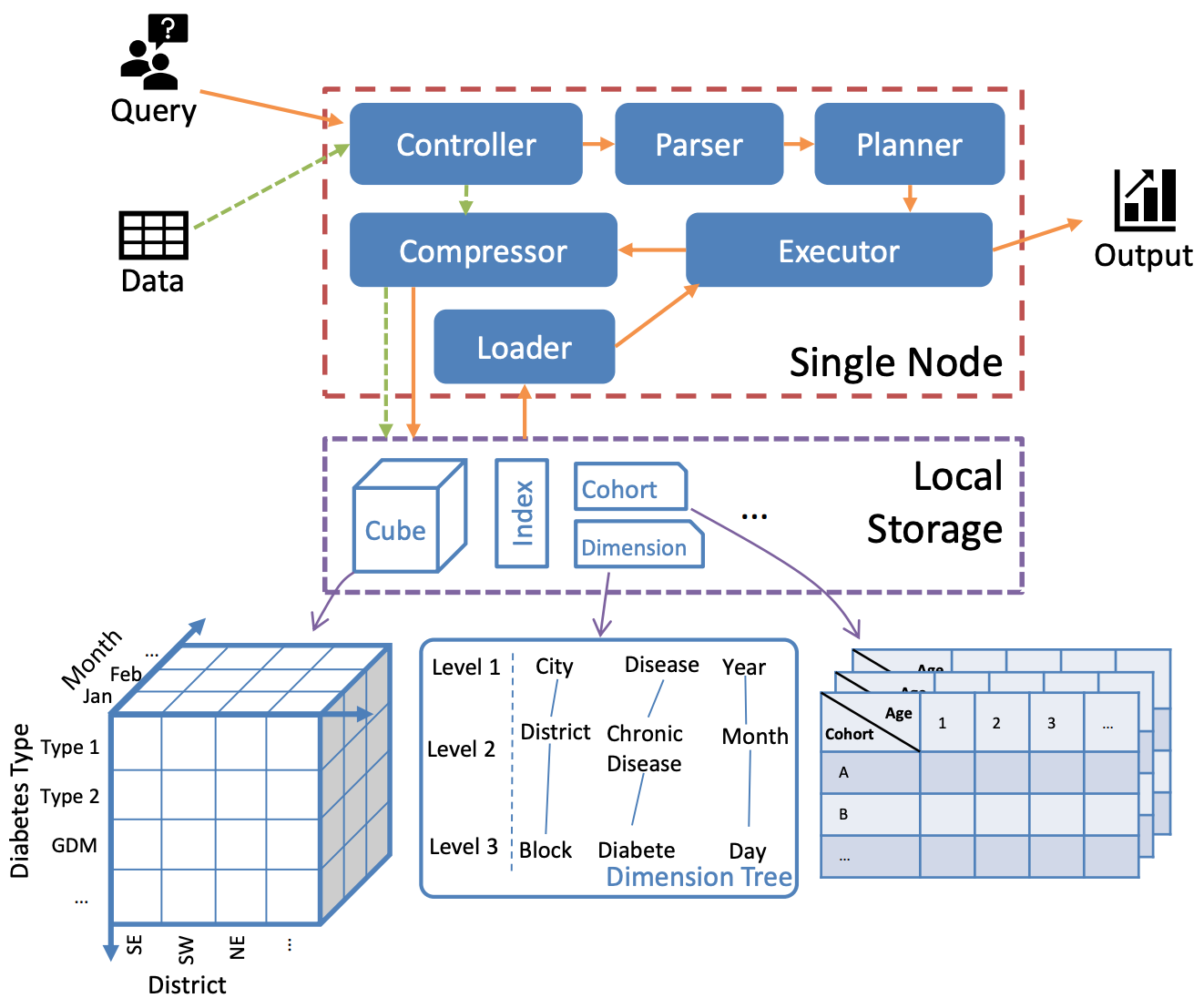

Single node Architecture

single_node_architecture

Single Node Operation

By default, we can run COOL at a single node mode, as a single Java process. This is useful for debugging.

Run a single node server

We can start the COOL's query server with the following command

java -jar cool-queryserver/target/cool-queryserver-0.0.1-SNAPSHOT.jar <datasetSource> <PORT> STANDALONE

For example,

java -jar cool-queryserver/target/cool-queryserver-0.0.1-SNAPSHOT.jar /COOL/datasetSource/ 9009 STANDALONE

where the argument is as follows:

  1. datasetSource: the path to the repository of compacted datasets.
  2. 9009: the port of the server.
  3. STANDALONE: run as a single-node model

API

In this server, we implement many APIs and list their corresponding URLs as follows:

  • [server:port]: info

    • List all workable URLs
    curl --location --request GET 'http://localhost:9009/info'

  • [server:port]: load

    • Reload the cube to the native format
    curl --location --request POST 'http://127.0.0.1:9009/load' \
    --header 'Content-Type: application/json' \
    --data-raw '{"dataFileType": "CSV", "cubeName": "health", "schemaPath": "health/table.yaml", "dimPath": "health/dim.csv", "dataPath": "health/raw2.csv", "outputPath": "datasetSource"}'

  • [server:port]: listcubes

    • List existing cubes
    curl --location --request GET 'http://127.0.0.1:9009/listcubes'

  • [server:port]: cohort/list

    • List all cohorts from the selected cube
    curl --location --request GET 'http://127.0.0.1:9009/cohort/list?cube=health'

  • [server:port]: cohort/selection

    • Cohort Selection
    curl --location --request POST 'http://127.0.0.1:9009/cohort/selection' \
    --header 'Content-Type: application/json' \
    --form 'queryFile=@"COOL/health/query1-0.json"'

  • [server:port]:v1/cohort/exploration

    • Cohort Exploration

  • [server:port]: /cohort/cohort-analysis

    • Perform cohort analysis
    curl --location --request POST 'http://127.0.0.1:9009/cohort/cohort-analysis' \
    --header 'Content-Type: application/json' \
    --form 'queryFile=@"/COOL/health/query2.json"'

  • [server:port]:v1/funnel/analysis

    • Perform funnel analysis
    curl --location --request POST 'http://127.0.0.1:9009/cohort/funnel-analysis' \
    --header 'Content-Type: application/json' \
    --form 'queryFile=@"/COOL/sogamo/query1.json"'

  • [server:port]: /olap/iceberg

    • Perform iceberg query
    curl --location --request POST 'http://127.0.0.1:9009/olap/iceberg' \
    --header 'Content-Type: application/json' \
    --form 'queryFile=@"/COOL/olap-tpch/query.json"'
