5
Migrating from Oracle7 Using the Oracle Data Migration Assistant

This chapter guides you through the process of migrating an Oracle7 database to Oracle8i using the Oracle Data Migration Assistant. This chapter covers the following topics:

Documentation Roadmap for Using the Oracle Data Migration Assistant

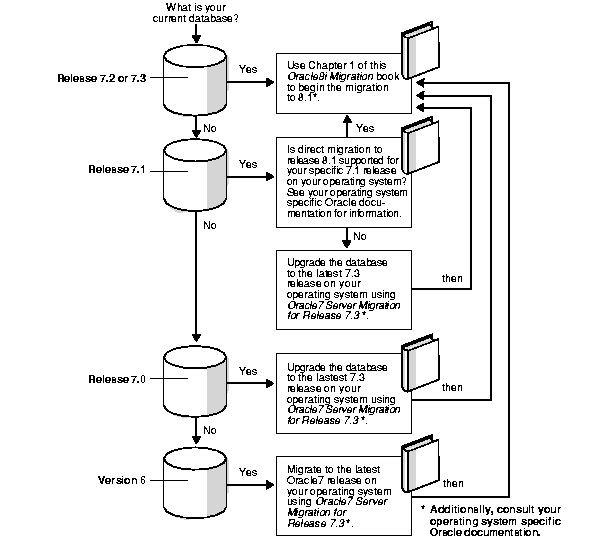

Figure 5-1 is a roadmap that specifies the documentation you should use to migrate your database to release 8.1 based on your current release of Oracle.

Figure 5-1 Documentation Roadmap for Using the Oracle Data Migration Assistant

Overview of Migration Using the Oracle Data Migration Assistant

This section contains important considerations for using the Oracle Data Migration Assistant.

Restrictions Related to the Oracle Data Migration Assistant

The following restrictions apply to the Oracle Data Migration Assistant:

The Oracle Data Migration Assistant does not support the migration of systems with Oracle Parallel Server installed. If you have Oracle Parallel Server installed, then you must use another method to migrate your database, such as the Migration utility or Export/Import.

Migrating Oracle Parallel Server on a Windows Platform:
If you are migrating an Oracle Parallel Server on a Windows platform, follow the migration instructions in the Oracle Parallel Server Administrator's Guide for Windows NT.

The Oracle Data Migration Assistant does not support the migration of systems that use raw devices. If you are using raw devices, then you must use another method to migrate your database, such as the Migration utility or Export/Import.

Start with an Oracle7 Database Supported by the Oracle Data Migration Assistant

A version 6 database must be migrated to at least Oracle7 before it can be migrated to Oracle8i. Also, the Oracle Data Migration Assistant cannot migrate some Oracle7 releases. See your operating system-specific Oracle documentation for information about the earliest release that is supported by the Oracle Data Migration Assistant on your operating system.

In general, the Migration utility supports migrations of the last 7.1 release and higher databases on your operating system. The exact maintenance release number of the last 7.1 release varies from operating system to operating system.

For example, on some operating systems, the Oracle Data Migration Assistant can migrate only release 7.1.4 and later databases, and cannot migrate a release lower than release 7.1.4 (such as release 7.0 or release 7.1.3). If your database release number is lower than the release supported by the Oracle Data Migration Assistant on your operating system, then upgrade or migrate the database to the required release.

See Also:
Oracle7 Server Migration, Release 7.3 for instructions about migrating or upgrading the database to the required release. Then, use this Oracle8i Migration manual to migrate to Oracle8i.

Downgrading

Downgrading is the process of transforming an existing Oracle database into a previous version or release. The Oracle Data Migration Assistant cannot transform an Oracle8i database back to Oracle7. In some situations, you can use another facility to downgrade, such as using Export/Import, restoring from backups, and possibly using other functions.

See Also:
Chapter 13 and Chapter 14 for information about downgrading.

System Considerations and Requirements

The following sections discuss system considerations and requirements for using the Oracle Data Migration Assistant.

Space Requirements

Oracle8i binaries may require as much as three times the disk space required by Oracle7 binaries. This requirement may cause you to run out of disk space during migration. However, the Oracle Data Migration Assistant requires relatively little temporary space. It needs only enough extra room in the SYSTEM tablespace to hold the new Oracle8i data dictionary simultaneously with the existing Oracle7 data dictionary.

The space required to hold an Oracle data dictionary depends on how many objects are in the database. Typically, a new Oracle8i data dictionary requires double the space that its Oracle7 source data dictionary required. If necessary, add space to the SYSTEM tablespace. The Oracle Data Migration Assistant will not complete the migration unless sufficient space is allocated in the SYSTEM tablespace.

If you need to add more space to the SYSTEM tablespace, then issue a statement similar to the following, substituting the appropriate directory path and name for the new datafile and the amount of space you need to add:

ALTER TABLESPACE system
   ADD DATAFILE '/home/user1/mountpoint/oradata/db1/system02.dbf'
   SIZE 50M;

Control files are considerably larger in Oracle8i than in Oracle7. For example, Oracle7 control files in the hundreds of kilobytes may expand into tens of megabytes in Oracle8i. The larger size in Oracle8i results from the storage of more information in the control file, such as backup and tablespace records. This size increase could be important if a control file is on a file system where its available disk space is restricted.

Block Size Considerations

The value of DB_BLOCK_SIZE (an initialization parameter in the initialization parameter file) in the Oracle7 database and in the migrated Oracle8i database must be the same. Oracle8i requires a minimum block size of 2048 bytes (2KB). Above this amount, integer multiples of your operating system's physical block size are acceptable. However, multiples of 2KB, especially powers of 2--that is, 2KB, 4KB, 8KB, 16KB--provide for the most robust operation.

Make sure the Oracle8i block size setting meets the following criteria:

Matches the Oracle7 setting.
Is at least 2048 bytes (2KB). The Oracle Data Migration Assistant displays an error message if the Oracle7 block size is less than 2KB.
Is an integer-multiple of your operating system's physical block size, preferably a multiple of 2KB.

Considerations for SQL*Net

There are many issues relating to SQL*Net that you must consider when you migrate your database to Oracle8i, not the least of which is deciding whether you will migrate to Net8.

See Also:
Appendix F, "SQL*Net and Net8 Considerations for Migrations and Upgrades" for information about these issues and for instructions on migrating from SQL*Net to Net8.

Considerations for Replication Environments

You can migrate an Oracle7 replication environment to Oracle8i. Oracle7 sites can co-exist and run successfully with version 8 sites within the replication environment. However, take special care to accommodate the various replication features implemented on each system.

See Also:
Appendix G, "Migration and Compatibility for Replication Environments" for detailed instructions about migrating systems using replication features.

Considerations for Migrating from ConText to interMedia

See Oracle8i interMedia Text Migration for information about migrating from ConText to interMedia.

Considerations for a Distributed Database

When migrating from Oracle7 in a distributed database configuration, make sure that no pending transactions are in the DBA_2PC_PENDING data dictionary view before migrating the database. Otherwise, when you open the database after migration using the ALTER DATABASE RESET LOGS statement and a transaction is pending, you will encounter an error.

If there are any pending transactions, then resolve them before you migrate using the SQL commands COMMIT FORCE or ROLLBACK FORCE.

Migrating to a Different Operating System

The Oracle Data Migration Assistant cannot migrate a database to a computer system that has a different operating system. For example, it cannot migrate a database from Oracle7 on Solaris to Oracle8i on Windows NT. However, you normally can use Export/Import to migrate a database to a different operating system.

Note:
Starting with release 8.1, a change in word-size is supported during the migration process. A change in word size involves switching between 32-bit and 64-bit architecture within the same operating system. See "Changing Word-Size" for more information.

Character Set Considerations

It is not possible to change the character set during migration using the Oracle Data Migration Assistant; that is, the Oracle7 source database and the migrated Oracle8i database must have the same character set. All character data in the Oracle8i database is assumed to be in the character set specified in the CREATE DATABASE statement that created the database.

However, you can change the character set by performing a full Export/Import. Or, you can use the ALTER DATABASE [NATIONAL] CHARACTER SET statement to change the character set, but only if the new character set is a true superset of the existing character set.

See Also:
The Oracle8i National Language Support Guide for information about National Language Support (NLS), instructions for specifying a character set, and for a full list of character sets that can be used with the ALTER DATABASE [NATIONAL] CHARACTER SET statement.

Prepare the Oracle7 Source Database for Migration

Complete the following steps before you migrate your Oracle7 database to Oracle8i:

If your database release number is lower than the release supported by the Oracle Data Migration Assistant on your operating system, then upgrade or migrate the database to a supported release.

See Also:
"Start with an Oracle7 Database Supported by the Oracle Data Migration Assistant" for more information.

Make a complete backup of your Oracle7 database. Determine the files that you must back up by issuing the following SQL statements:

SPOOL v7files.log;
SELECT member FROM v$logfile;

SELECT name FROM v$datafile;

SELECT value FROM v$parameter WHERE name = 'control_files';
SPOOL OFF;

The v7files.log spool file lists all of the files that you must back up.

Caution:
If you encounter any problems with the migration, then you will need to restore the database from this backup. Therefore, make sure you back up your database now as a precaution.

See Also:
The Oracle7 Server Administrator's Guide for information about backing up your Oracle7 database.

If the Procedural Option is not installed, then use your Oracle7 installation media to install it. See your operating system-specific Oracle documentation for instructions.

If you are not sure whether the Procedural Option is installed, then you can check by starting Server Manager or SQL*DBA. The following is an example of the messages you will see when Server Manager starts:
```
Oracle Server Manager Release 2.3.3.0.0 - Production

Copyright (c) Oracle Corporation 1994, 1995. All rights reserved.

Oracle7 Server Release 7.3.4.0.0 - Production
With the distributed, replication, and Spatial Data options
PL/SQL Release 2.3.4.0.0 - Production
```
The messages you see may be slightly different, based on the options you have installed and their release numbers. If you see "PL/SQL" in the messages, as in the last line in the preceding example, then the Procedural Option is installed. Otherwise, it is not installed.
Make sure all datafiles and tablespaces are either online or offline normal.

To determine whether any datafiles require recovery, issue the following SQL statement:
```
SELECT * FROM v$recover_file;
```
You should see a "0 rows selected" message, which indicates that all datafiles are either online or offline normal. If any datafiles are listed, then you must restore the datafiles before you migrate the database. You can use the V$DATAFILE dynamic performance view to find the datafile name based on the datafile number. You will encounter an error during migration if any datafiles require media recovery.

Tablespaces that are not taken offline cleanly must be dropped or brought online before migration. Otherwise, these tablespaces will not be available under Oracle8i after the migration. Typically, tablespaces that are taken offline by using an ALTER TABLESPACE OFFLINE IMMEDIATE or ALTER TABLESPACE OFFLINE TEMPORARY statement require media recovery.

After migration, tablespaces that are offline when you open the Oracle8i database remain in Oracle7 database file format. The offline tablespaces can be brought online at any time after migration, and the file headers are converted to Oracle8i format at that time. In addition, if you want to avoid large restores in the event of a failure, then you can make all tablespaces except SYSTEM and ROLLBACK offline normal; then, you can restore only the datafiles for SYSTEM and ROLLBACK if you need to run another migration.
Make sure no user or role has the name OUTLN, because this schema is created automatically when you install Oracle8i. If you have a user or role named OUTLN, then you must drop the user or role and recreate it with a different name.

To check for a user with the name OUTLN, issue the following SQL statement:
```
SELECT USERNAME FROM dba_users WHERE USERNAME = 'OUTLN';
```
If you do not have a user named OUTLN, then zero rows are selected.

To check for a role with the name OUTLN, issue the following SQL statement:
```
SELECT ROLE FROM dba_roles WHERE ROLE = 'OUTLN';
```
If you do not have a role named OUTLN, then zero rows are selected.
Make sure no user or role has the name MIGRATE, because the Oracle Data Migration Assistant creates this schema and uses it to replace any pre-existing user or role with this name, and finally drops it from the system.

To check for a user named MIGRATE, issue the following SQL statement:
```
SELECT USERNAME FROM dba_users WHERE USERNAME = 'MIGRATE';
```
If you do not have a user named MIGRATE, then zero rows are selected.

To check for a role named MIGRATE, issue the following SQL statement:
```
SELECT ROLE FROM dba_roles WHERE ROLE = 'MIGRATE';
```
If you do not have a role named MIGRATE, then zero rows are selected.
Make sure the SYSTEM rollback segment does not have an OPTIMAL setting. An OPTIMAL setting may cause errors during migration.

To check the OPTIMAL setting for the SYSTEM rollback segment, issue the following SQL statement:
```
SELECT a.usn, a.name, b.optsize
    FROM v$rollname a, v$rollstat b
    WHERE a.usn = b.usn AND name='SYSTEM';
```
Your output should be similar to the following:
```
USN        NAME                           OPTSIZE
---------- ------------------------------ ----------
         0 SYSTEM
1 row selected.
```
If there is a value in the OPTSIZE column, then issue the following SQL statement to set optimal to NULL:
```
ALTER ROLLBACK SEGMENT SYSTEM STORAGE (OPTIMAL NULL);
```
You can reset OPTIMAL when migration is complete.

See Also:
The troubleshooting information in "OPTIMAL Setting for the SYSTEM Rollback Segment".
Increase the maximum number of extents for your SYSTEM rollback segment by altering the MAXEXTENTS parameter in the STORAGE clause of the ALTER ROLLBACK SEGMENT statement (optional).

The following is an example of the ALTER ROLLBACK SEGMENT statement:
```
ALTER ROLLBACK SEGMENT system
   STORAGE (MAXEXTENTS 121);
```
You may need more space in the SYSTEM rollback segment to complete the migration successfully. If there is not enough space in your SYSTEM rollback segment, then you may encounter an error when you run the Oracle Data Migration Assistant.

In addition, if you are migrating a release 7.1.6 or lower database, then you may need to increase the size of your extents by dropping and recreating your rollback segments.
Make sure your SYSTEM tablespace has enough free space to hold the Oracle8i data dictionary and the existing Oracle7 data dictionary concurrently.

To check the free space in your SYSTEM tablespace, issue the following SQL statement:
```
SELECT sum(bytes) FROM dba_free_space
   WHERE tablespace_name='SYSTEM';
```
This statement displays the number of free bytes in the system tablespace.

See Also:
"Space Requirements" and "Assess System Requirements vs. Resources Available" for more information.
Make sure all online data files are accessible and in the correct directories.
Adjust the initialization parameter file for use with Oracle8i. The initialization parameter file may still reside in the Oracle7 environment; the Oracle Data Migration Assistant will copy it to the Oracle8i environment when it is run.

Specifically, complete the following steps:
1. If you are updating snapshots automatically by using the JOB_QUEUE_PROCESSES initialization parameter, then set this parameter to 0 (zero) in the initialization parameter file. After migrating your database, you can change the setting for this parameter back to its normal setting.
2. Make sure the OPTIMIZER_MODE initialization parameter is set to CHOOSE. After migrating your database, you can change the setting for this parameter back to its normal setting.
3. Make sure your DB_DOMAIN initialization parameter is set properly.

  See Also:
  "The DB_DOMAIN Parameter" for more information about setting this initialization parameter.
4. On Windows platforms, change the BACKGROUND_DUMP_DEST and USER_DUMP_DEST initialization parameters that point to RDBMS71, RDBMS72, or RDBMS73 to point to the following directories instead (optional):

  Initialization Parameter Change Setting To

  BACKGROUND_DUMP_DEST

  ORACLE_BASE\oradata\DB_NAME

  USER_DUMP_DEST

  ORACLE_BASE\oradata\DB_NAME\archive

  In the settings, substitute the complete ORACLE_BASE path for ORACLE_BASE and substitute the database name for DB_NAME.
5. If the initialization parameter file contains an IFILE (include file) entry, then edit the file specified in the IFILE entry in the same way that you edited the initialization parameter file in sub-steps a to d.
Make sure you save the initialization parameter file and the file specified in the IFILE entry, if one exists, after making these adjustments.

Initialization Parameter	Change Setting To
BACKGROUND_DUMP_DEST	`ORACLE_BASE``\oradata\``DB_NAME`
USER_DUMP_DEST	`ORACLE_BASE``\oradata\``DB_NAME``\archive`

Prepare for Migration on a Windows Platform

In addition to the steps described in the previous section, "Prepare the Oracle7 Source Database for Migration", complete the following steps if you are migrating your database on a Windows platform:

Make sure you have the required release of SQL*Net installed.

Migrating From Required SQL*Net Release

Oracle release 7.3.2

SQL*Net release 2.3.2.1.12 or higher
Note: If your release of SQL*Net is below release 2.3.2.1.4, you must first install release 2.3.2.1.4 before you can upgrade to release 2.3.2.1.12. Contact Oracle Customer Support Services to obtain the patch that includes release 2.3.2.1.4.

Oracle release 7.3.3

SQL*Net release 2.3.3.0.3 or higher

Migrating From	*Required SQLNet Release**
Oracle release 7.3.2	SQLNet release 2.3.2.1.12 or higher Note:* If your release of SQL*Net is below release 2.3.2.1.4, you must first install release 2.3.2.1.4 before you can upgrade to release 2.3.2.1.12. Contact Oracle Customer Support Services to obtain the patch that includes release 2.3.2.1.4.
Oracle release 7.3.3	SQL*Net release 2.3.3.0.3 or higher

If the required release of SQL*Net is not installed, complete the following steps to install it:

Obtain the year 2000-compliant Oracle Installer for release 7.3 from Oracle Corporation.
Start the Oracle Installer you obtained in Step a. Respond to the Oracle Installer screens until you reach the Software Asset Manager screen.
At the Software Asset Manager screen, click the From button.
Navigate to the drive containing the CD-ROM for the current 8.1 release of Oracle.
Navigate to the appropriate directory on the CD-ROM:

If you are installing SQL*Net release 2.3.2.1.12, navigate to the following directory on the CD-ROM:
```
\patches\sqlnet\232112\nt_x86\install
```
If you are installing SQL*Net release 2.3.3.0.3, navigate to the following directory on the CD-ROM:
```
\patches\sqlnet\23303\nt_x86\install
```
Open the nt.prd file.
Complete the installation.
Exit the Oracle Installer.

See Also:
Your Oracle8i Installation Guide for Windows NT for more information about required SQL*Net releases.

Note:
If you cannot install the required SQL*Net release, contact Oracle Support Services.

Ensure all Oracle7 services are stopped, including the service for the Oracle7 database instance.

See Also:
Your Administrator's Guide for Windows for information about stopping services.

Install the Release 8.1 Oracle Software and Migrate the Database

Complete the following steps to install the release 8.1 software and migrate the database:

If you are using a UNIX operating system, then make sure you are logged in as a user with write permission to the ORACLE_HOME directory and all of its subdirectories.
Follow the instructions in your operating system-specific Oracle documentation to prepare for installation and start the Oracle Universal Installer.
At the Welcome screen of the Oracle Universal Installer, click Next. The File Locations screen appears.

If you need help at any screen or want to consult more documentation about the Oracle Universal Installer, then click the Help button to open the online help.
At the File Locations screen, complete the following steps:
1. Do not change the text in the Source field. This is the location of files for installation
2. If there is a Destination Name field, enter the name of a new Oracle home in this field.
3. Enter the complete path of the Oracle home directory where you want to install the new release in the Destination Path field. Click the Browse button to navigate to the directory.

  Note:
  If you are upgrading an 8.0 release, then you must install the new 8.1 release in an Oracle home separate from the previous 8.0 release.
4. Click Next.
The Available Products screen appears.
At the Available Products screen, select the Oracle8i server. The Oracle8i server is either Oracle8i Enterprise Edition or Oracle8i, depending on your installation medium. Then, click Next.
At the Installation Types screen, choose an installation type. Then, click Next.

If you chose Custom, Available Product Components screen appears. Complete the following steps:
1. Choose the product components you want to install. Then, click Next.

  Make sure you install all of the options you installed with the Oracle7 database, assuming you do not want to discontinue use of a particular option. For example, if you installed Oracle Advanced Replication in Oracle7, then you should install it in Oracle8i.
2. Respond to the remaining screens that enable you to specify your custom installation settings, until you reach the Upgrading or Migrating an Existing Database screen.
At the Upgrading or Migrating an Existing Database screen, complete the following steps:
1. Select the Upgrade or Migrate an Existing Database checkbox.
2. Choose the Oracle7 database to migrate.
3. Click Next.
At the Summary screen, make sure all of the settings and choices are correct for your installation. Then, click Install. The Oracle Universal Installer performs the installation, which may take some time.

When installation is complete, one or more assistants may be started. When the Oracle Data Migration Assistant is started, you are ready to proceed with the migration.

At the Before You Migrate or Upgrade screen of the Oracle Data Migration Assistant (shown in Figure 5-2), make sure the Oracle7 database that you are migrating meets the conditions specified. Then, click Next.

Note:
The Oracle Data Migration Assistant uses a SHUTDOWN IMMEDIATE statement to shut down the database. Therefore, no users should be logged into the database when the Oracle Data Migration Assistant starts. Users who are logged in will be disconnected.

Figure 5-2 Before You Migrate or Upgrade Screen

If you need help at any screen or want to consult more documentation about the Oracle Data Migration Assistant, then click the Help button to open the online help.

At the Select a Database Instance screen, select the database instance of the Oracle7 database you are migrating. Then, click Next.
At the Database Password and INIT.ORA File screen, complete the following steps:
1. Make sure the specified new Oracle home is correct.
2. Make sure the location of the initialization parameter file specified is the complete path to the initialization parameter file of the Oracle7 database that you are migrating. If the location is incorrect, click the Browse button to navigate to the correct directory.
3. Make sure the old Oracle home specified is the complete path to the Oracle home of the Oracle7 database you are migrating.
4. Click Next. The Choose Migration or Upgrade Type screen appears.
Choose a migration type. Then, click Next.

If you chose Custom, then respond to the screens that enable you to specify your custom migration settings until you reach the Backup Your Database screen. If you need help with any of the custom screens, click the Help button.
At the Backup Your Database screen, you have two options:
- Choose "I have already backed up my database" if you completed a backup before running the Oracle Data Migration Assistant.
- Choose "I would like this tool to back up the database" if you did not complete a backup. If you choose this option, then you can select the backup directory by clicking the Browse button.
After you have made your choice, click Next.
At the Start the Migration or Upgrade screen, make sure all of the specifications are correct. If anything is incorrect, then click Back until you can correct the specification. If everything is correct, then click Next.

When you click Next, the Status screen appears and the Oracle Data Migration Assistant begins to perform the migration. A status bar shows its progress. When the migration is complete, the Listener.ora Migration Confirmation screen appears.
At the Listener.ora Migration Confirmation screen, click the Yes button if you want the assistant to modify your listener.ora file automatically, or click the No button if you do not want the assistant to modify the listener.ora file.

Certain modifications are required to the listener.ora file for your database to work properly with Oracle Enterprise Manager. If you plan to use Oracle Enterprise Manager, then you should click the Yes button to automatically modify the listener.ora file. However, if you do not plan to use Oracle Enterprise Manager, then click the No button.

If you click the Yes button, then the Oracle Data Migration Assistant modifies the listener.ora file in the following way:
1. The assistant modifies the SID_DESC entry for the migrated database in the Oracle8i listener.ora in one of the following ways:

  A simple case: Suppose the old listener.ora has the following SID_DESC entry:
```
...
   (SID_DESC =
      (SID_NAME = ORCL)
   )
...
```
  If the database name is SAL, then the domain name is COM, and the Oracle home is /oracle/product/8.1, the assistant adds the following entry:
```
...
   (SID_DESC =
       (GLOBAL_DBNAME = sal.com)
          (ORACLE_HOME = /oracle/product/8.1)
          (SID_NAME = SAL)
    )
...
```
  A more complicated case: Suppose the old listener.ora has the following SID_DESC entry:
```
...
   (SID_DESC =
       (GLOBAL_DBNAME = an_entry)
       (SID_NAME = ORCL)
    )
...
```
  If an_entry does not match the GLOBAL_DBNAME of the migrated database, and if the database name is SAL, the domain name is COM, and the Oracle home is /oracle/product/8.1, then the assistant adds the following entry:
```
...
   (SID_DESC =
       (GLOBAL_DBNAME = sal.com)
          (ORACLE_HOME = /oracle/product/8.1)
          (SID_NAME = SAL)
    )
...
```
  This entry is the same as the entry in the simple case, but the assistant also adds the entry an_entry to the SERVICE_NAMES parameter. Therefore, the assistant changes the SERVICE_NAMES parameter to the following:
```
SERVICE_NAMES = sal.com, an_entry
```
2. The assistant removes the entry of the migrated database from the old listener.ora file.
3. The assistant starts up the Oracle8i listener.
4. The assistant reloads the listener.ora file in both the Oracle7 and the Oracle8i environments.

When the Oracle Data Migration Assistant is complete, go to "Finish the Migration" for information about additional migration steps.

Running the Oracle Data Migration Assistant Independently

If you installed Oracle8i without specifying that you are migrating an existing database, then you can run the Oracle Data Migration Assistant independently after the Oracle8i installation is complete.

Complete the following steps to run the Oracle Data Migration Assistant independently:

Start the Oracle Data Migration Assistant.

On UNIX, enter the following command at a system prompt:
```
odma
```
On Windows platforms, choose:
```
Start > Programs > Oracle - HOME_NAME > Migration Utilities >
Oracle Data Migration Assistant
```
When you start the Oracle Data Migration Assistant, its Welcome screen appears (see Figure 5-2 ).
Respond to the instructions in each Oracle Data Migration Assistant window, and click Next when you are ready to continue to the next window. When you reach the last window, click Next to begin the migration of the database. For more information about using the Oracle Data Migration Assistant, click the Help button in any window.

See Also:
Step 9 to Step 15 in "Install the Release 8.1 Oracle Software and Migrate the Database" for more information about the windows that appear in the Oracle Data Migration Assistant.

Finish the Migration

Complete the following steps after you have successfully run the Oracle Data Migration Assistant:

Change to the ORACLE_HOME/rdbms/admin directory in the Oracle8i Oracle home.
Start Server Manager. On most operating systems, enter svrmgrl at a command prompt to start Server Manager in Oracle8i.
Connect to the database instance as INTERNAL user.
Run STARTUP RESTRICT:
```
SVRMGR> STARTUP RESTRICT
```
You may need to use the PFILE option to specify the location of your initialization parameter file.

Note:
The database may already be started. If so, then you do not need to restart it.
Set the system to spool results to a log file for later verification of success:
```
SVRMGR> SPOOL catoutma.log
```
If you want to see the output on your screen of the scripts you will run, then you also can issue a SET ECHO ON statement:
```
SVRMGR> SET ECHO ON
```
If the Oracle system has Oracle replication installed, then complete the following steps:
1. Run catrep.sql:
```
SVRMGR> @catrep.sql
```
2. Run r0703040.sql:
```
SVRMGR> @r0703040.sql
```
  This r0703040.sql script performs a post-catrep.sql Oracle replication related upgrade.
If you encounter any problems when you run these scripts, or any of the scripts in the remaining steps, then correct the causes of the problems and rerun the scripts. You can rerun any of the scripts described in this chapter as many times as necessary.
Run utlrp.sql if you did not run it using the Oracle Data Migration Assistant (optional):
```
SVRMGR> @utlrp.sql
```
The utlrp.sql script recompiles all existing PL/SQL modules that were previously in an INVALID state, such as packages, procedures, types, and so on. These actions are optional; however, they ensure that the cost of recompilation is incurred during installation rather than in the future.

Oracle Corporation highly recommends performing this optional step.
Turn off the spooling of script results to the log file:
```
SVRMGR> SPOOL OFF
```
Then, check the spool file and verify that the packages and procedures compiled successfully. You named the spool file in Step 5; the suggested name was catoutma.log.

You should look for errors that alert you to insufficient space, and for errors that alert you that a script failed to run. If you see these types of errors, then your migration may not be completely successful. However, you typically can ignore errors about the failure to alter or drop an object that does not exist.

If you specified SET ECHO ON, then you may want to SET ECHO OFF now:
```
SVRMGR> SET ECHO OFF
```
Run SHUTDOWN on the Oracle8i database:
```
SVRMGR> SHUTDOWN IMMEDIATE
```
Caution:
Use SHUTDOWN NORMAL or SHUTDOWN IMMEDIATE. Do not use SHUTDOWN ABORT.

Executing this clean shutdown flushes all caches, clears buffers, and performs other DBMS housekeeping activities. These measures are an important final step to ensure the integrity and consistency of the newly migrated Oracle8i database.
Adjust the initialization parameter file for Oracle8i.

Alter any parameter whose syntax has changed in version 8; refer to Appendix B, "Changes to Initialization Parameters" for lists of new, renamed, and obsolete parameters.

Also, learn about the new parameters listed in Appendix B, "Changes to Initialization Parameters" and decide which ones you want to use for your migrated database.

In addition, the Oracle Data Migration Assistant sets the COMPATIBLE initialization parameter to 8.0.5. See Chapter 9, "Compatibility and Interoperability" for information about resetting the COMPATIBLE initialization parameter.

See Also:
Oracle8i Reference for detailed information about initialization parameters.
If your operating system is Windows, then restart your computer.

Complete the procedures described in Chapter 8, "After Migrating or Upgrading the Database".

Caution:
If you retain the old Oracle7 software, then never start the migrated database with the old Oracle7 software. Only start the database with the executables in the new Oracle8i installation directory. Also, before you remove the old Oracle7 environment, make sure you relocate any datafiles in that environment to the Oracle8i environment. See the Oracle8i Administrator's Guide for information about relocating datafiles.

Troubleshooting Errors During Migration

Errors may be caused by the following actions or omissions:

performing a migration step out of order
failing to fulfill the prerequisites for migration
encountering an occasional conversion irregularity

See Also:
Appendix A, "Troubleshooting Migration Problems" and Oracle8i Error Messages for information about errors during migration and about corrective action for each error.

Abandoning the Migration

The easiest way to abandon a migration is to restore the backup of your Oracle7 database that you took before you ran the Oracle Data Migration Assistant.

5 Migrating from Oracle7 Using the Oracle Data Migration Assistant
