Introducing Oracle Enterprise Manager

Oracle Enterprise Manager is a system management tool which provides an integrated solution for centrally managing your heterogeneous environment. Oracle Enterprise Manager combines management applications such as the Console, Oracle Management Servers, Oracle Intelligent Agents, common services, and tools to provide an integrated, comprehensive systems management platform for managing Oracle products.

This introduction discusses the topics listed below:

Oracle Enterprise Manager's Architecture

Oracle Enterprise Manager is based on a highly scalable three-tier model.

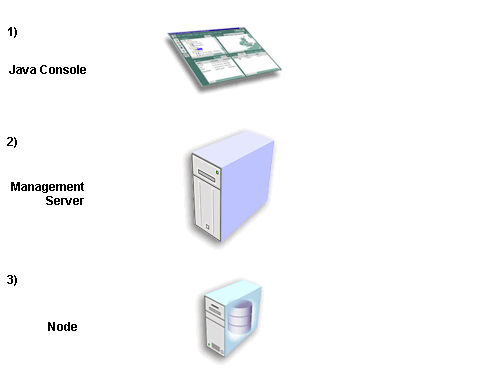

Figure 1-1 Three-Tier Architecture

Text description of architec.gif follows.

Text description of the illustration architec.gif

The first tier, the client, consists of a Java-based Console and integrated applications.

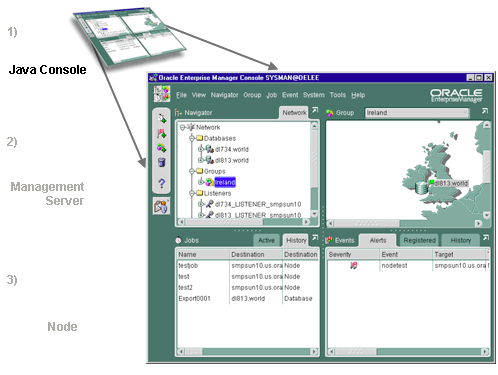

Figure 1-2 First Tier

Text description of first_ti.gif follows.

Text description of the illustration first_ti.gif

The second tier is the Management Server or designated group of Management Servers which manages the flow of information between the clients and targets.

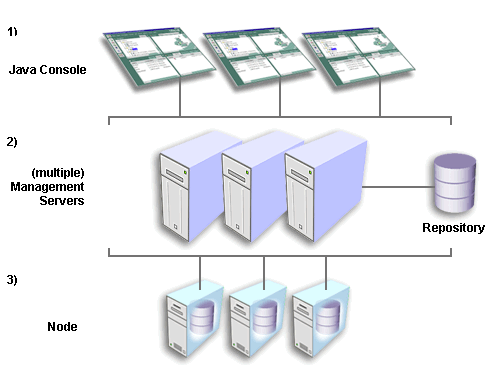

Figure 1-3 Second Tier

Text description of second_t.gif follows.

Text description of the illustration second_t.gif

The third tier is comprised of targets, such as databases, nodes, or other managed services. An Intelligent Agent resides on each target node and monitors the services in the target for registered events (potential problem occurrences) and executes jobs sent by the Console via the Oracle Management Server(s). Only one Intelligent Agent can run on a single machine, regardless of the number of services on that machine.

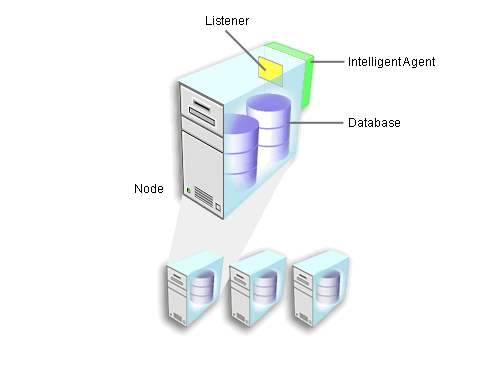

Figure 1-4 Third Tier

Text description of third_ti.gif follows.

Text description of the illustration third_ti.gif

Oracle Enterprise Manager's three main components are listed below:

Component Function

Console

The Console gives you a central point of control for the Oracle environment through an intuitive graphical user interface (GUI) that provides powerful and robust system management.

Management Server

The Oracle Management Server authenticates the Oracle Enterprise Manager administrator, processes management functions, and provides a centralized data store of administrative information. The administrative information includes jobs, events, groups, and preferred credentials. Administrators who share responsibility for a managed target (for example, a database) can share administrative information for that target.

Intelligent Agent

The Intelligent Agent is a process that runs on managed nodes in the network. It functions as the executor of jobs and events sent by the Console via the Management Servers.

Component	Function
Console	The Console gives you a central point of control for the Oracle environment through an intuitive graphical user interface (GUI) that provides powerful and robust system management.
Management Server	The Oracle Management Server authenticates the Oracle Enterprise Manager administrator, processes management functions, and provides a centralized data store of administrative information. The administrative information includes jobs, events, groups, and preferred credentials. Administrators who share responsibility for a managed target (for example, a database) can share administrative information for that target.
Intelligent Agent	The Intelligent Agent is a process that runs on managed nodes in the network. It functions as the executor of jobs and events sent by the Console via the Management Servers.

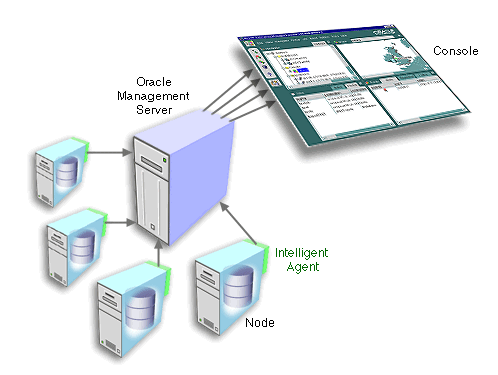

Figure 1-5 Oracle Enterprise Manager's Components
Text description of the illustration 3tier.gif

Basic Terminology

What is a repository?

A repository is a set of tables in a database containing the internal state information of Enterprise Manager for the managed environment and information about the management packs. It is used as a back-end store by the Oracle Management Servers, providing distributed control between clients and managed nodes.

What is a repository user?

An Enterprise Manager repository is owned by a database user. During repository creation a repository's user name is entered that will be used to create this database user.

The name of the repository user will also be the name of this repository, and this name will be used throughout the network to identify all the objects in this repository. The name of the repository must be a unique schema name across the entire managed network.

If the repository user name and encrypted password are saved during repository creation, the Management Server uses them to login to the repository; if they are not saved, the Management Server prompts the user for a user name and password before it starts up.

What is an administrative user?

An Oracle Enterprise Manager administrative user is an account that provides users permission to perform administrative tasks and access administrative information. An administrative account is usually created for each person on an administrative team. Preferences, such as preferred credentials, login password, and email and paging notification schedules, must be set for each administrator. Generally each person has a single administrative user account through which he administers several to many targets.

Administrative user accounts are created by the super administrator. Oracle Enterprise Manager is installed with a default super administrator account which can be used for the initial login. The super administrator account is sysman and the initial password is oem_temp. The password must be changed after the initial login. The super administrator account is similar to root on UNIX or Administrator on Windows NT and is a user which cannot be deleted or renamed.

Note:
Administrator user accounts are specific to Oracle Enterprise Manager and are different than Oracle database users.

What is a Console?

The Console, a graphical interface for administrators and the central launching point for all applications (including the integrated applications), is a Java-based application that can be run as either a "thin" or "fat" client. Thin clients use a web browser to connect to a server where Console files are installed, whereas fat clients require Console files to be installed locally.

However you run the Console, it relies on the Oracle Management Server and the Oracle Intelligent Agent to perform system management tasks.

What is an Oracle Management Server?

The Management Server is the core of the Enterprise Manager framework. It provides administrative user accounts, processes management functions such as jobs and events, and manages the flow of information between the tiers.

As the number of nodes and managed services in your network increases or if the current Management Server is overloaded, you can add more Oracle Management Servers to the middle tier to share and balance the workload. These additional Management Servers provide fault-tolerance in the case where one Management Server becomes unavailable. All Management Servers administering the same set of managed nodes share a single Repository, which stores all system data, application data, and the state of managed nodes throughout the environment.

What is the Oracle Intelligent Agent?

An Oracle Intelligent Agent is a process on a managed server, which monitors registered events and runs scheduled jobs against all discovered services on that server. Only one Intelligent Agent is required per node regardless of the number of services present on that machine. Intelligent Agents function independently of the database or services they support, as well as being independent of the Management Server and Console clients.

What is service discovery?

There are two types of discovery:

Automatic discovery performed by the Intelligent Agent to record the list of all services that it can manage
Service discovery performed by the Console to obtain the list of services from the Intelligent Agent so that the Console Navigator can display the services

Without the Intelligent Agent discovery, there is no Console discovery. Both discoveries must be successful and must happen in the correct order for the services to appear in the Console Navigator.

When you use the Discovery Wizard in the Console, the Management Server contacts the Intelligent Agent installed on that node to discover the Oracle services installed on the node.

When the Intelligent Agent starts, it performs its service discovery by scanning the system for Oracle services to manage. The Intelligent Agent records the service discovery. When the Console requests a discovery of the node, the Intelligent Agent transmits the service discovery information it has detected to the Management Server.

The Management Server then places the new information in the repository, and updates the Console Navigator, displaying a view of all nodes and their respective services.

Service discovery allows administrators to run jobs and monitor for events on those nodes and allows the information to be centrally managed by the Consoles.

What is a Managed Node?

A managed node is any machine that is being monitored by an Intelligent Agent that has been discovered by the Console.

What is a Managed Service/Managed Target?

Every service running on a managed node is a managed service or target. Multiple services (targets) can exist on a single machine (node).

What are preferred credentials?

This section contains information about:

preferred credential saved through the Oracle Enterprise Manager Console
local preferred credentials saved through DBA Studio

Preferred Credentials Saved Through the Oracle Enterprise Manager Console

Each administrator can set up specific usernames, passwords, and roles (NORMAL, SYSOPER, or SYSDBA) for nodes, listeners, databases, and other services that you administer in the network.

After you set up preferred credentials, you are no longer prompted for credentials when connecting to the managed targets.

The Preferred credentials you set up through the Console also allow you to use the job and event system for targets where credentials are required. All login credentials set up through the Console are encrypted in the repository.

Local Preferred Credentials Saved Through DBA Studio

DBA Studio stores a list of databases that are displayed in the DBA Studio navigator tree. If preferred credentials are specified for any of these databases, the username, encrypted password, and role are added to a local file.

Saving or editing preferred credentials is an option which enables you to store login information, such as username, password, and role (NORMAL, SYSOPER, or SYSDBA). Passwords are always stored in encrypted format. This login information is used when a connection is established for the database instead of having to type a username and password each time.

Oracle Enterprise Manager System and Hardware Requirements

You can run Oracle Enterprise Manager components in any configuration depending on your management environment. For example, you can run each tier on separate machines or run all three tiers on one machine.

Note:
Examples of requirements for Windows-based machines are listed below.

Running Enterprise Manager components on separate machines requires the following:

Client-Only

Machine running only the Console and DBA Management Pack:

Pentium 266 MHz or SPARC 20
128 MB RAM
190 MB available hard disk space (on NTFS). FAT can consume as much as four times as much disk space as NTFS.

Client-Server

Running the entire Enterprise Manager bundle (Console, DBA Management Pack, Oracle Management Server and database repository) from a single machine requires the following:

Pentium II 400 MHz or SPARC Ultra 1
256 MB RAM
190 MB available hard disk space (on NTFS). FAT can consume as much as four times as much disk space as NTFS. 190 MB includes 6-26 MB for configuring the Repository. Refer to Appendix E, "Repository Sizing" for information on how much you can expect your repository to grow.

Running the Enterprise Manager Console from a web browser requires 128 MB RAM.

Downloading Enterprise Manager from the webserver requires 50 MB of disk space.

Note:
The requirements outlined above assume that a database for the Enterprise Manager Repository already exists. If a database has not already been installed, you must install one. For recommended system and hardware requirements for an Oracle database, refer to the installation guide provided with that database release.

The default Enterprise Manager package (using a single Oracle Management Server in your environment) is tuned to best support an environment with the following characteristics:

Up to 64 managed nodes
Up to 256 managed database instances or other managed targets (up to 10 managed targets on any one node)
Up to 15 Consoles actively being used at one time

If the available Management Servers are CPU-bound (the CPU usage is exhausted), adding additional Management Servers is an alterative to increasing the capacity of the nodes that run the Management Servers.

To improve performance when the number of Consoles, jobs or events increases, Oracle recommends increasing resource capacity on the Repository database machine.

Oracle Enterprise Manager Release 2.2 Certification

Oracle Enterprise Manager Release 2.2 is certified on the following operating systems:

Windows 95
Windows 98
Windows NT, SP4 and higher
Windows 2000
Solaris 2.6
Solaris 2.7

The Management Server is not certified on Windows 95 or Windows 98.

Browser-based Oracle Enterprise Manager is only supported on the following operating systems: Windows 95, Windows 98, Windows NT, and Windows 2000.

Overview of Oracle Enterprise Manager Configuration

The tables below outline the steps needed for various Enterprise Manager configurations:

Details of the steps involved can be found in the indicated sections.

Configuring Oracle Enterprise Manager Quickly (Quick Start)

The following configuration may be used for most small to medium-sized environments. Small to medium-sized environments are environments which administer fewer than 64 managed nodes.

In this configuration, the middle-tier and client-tier Oracle Enterprise Manager components are on the same node.

Note:
The information below is for new installations. For guidelines to upgrading your Oracle Enterprise Manager framework and Management Packs from previous 2.x releases to Release 2.2, refer to "Upgrading Your Oracle Enterprise Manager Framework and Management Packs" on page 1-19.

Procedure Refer to

Make sure you have installed an Intelligent Agent on the node to be managed. If not, install a version of the Intelligent Agent which is the same or higher than the highest version of the database present on the machine.

If the Intelligent Agent version is the same as the database version, you can install them in the same ORACLE_HOME, otherwise the Intelligent Agent will have to be installed in a separate ORACLE_HOME.

Refer to the installation guide provided with the database release.

Start the Intelligent Agent, and check that all services are recorded in the services.ora file which is located in the ORACLE_HOME/network/agent directory.

Refer to the Oracle Intelligent Agent User's Guide for details if you encounter any problems.

Procedure	Refer to
Make sure you have installed an Intelligent Agent on the node to be managed. If not, install a version of the Intelligent Agent which is the same or higher than the highest version of the database present on the machine. If the Intelligent Agent version is the same as the database version, you can install them in the same ORACLE_HOME, otherwise the Intelligent Agent will have to be installed in a separate ORACLE_HOME.	Refer to the installation guide provided with the database release.
Start the Intelligent Agent, and check that all services are recorded in the services.ora file which is located in the ORACLE_HOME/network/agent directory.	Refer to the Oracle Intelligent Agent User's Guide for details if you encounter any problems.

Procedure Refer to

Use an existing database for the Oracle Management Server repository or install and use a new Oracle database.

Refer to the installation guide provided with the database release.

Install the Management Server, and the Oracle Enterprise Manager client software in a new ORACLE_HOME.

If you are installing from the database CD, choose the install type: Oracle8i Management and Integration->Oracle Management Server.

If you are installing from the separately licensable packs CD, choose the install type: Oracle Enterprise Manager Packs and Management Infrastructure.

Refer to the installation guide provided with the database release or the installation guide provided with the separately licensable packs.

At the end of installation, create a repository in your database. Depending on which installation type you have chosen, the Oracle Enterprise Configuration Assistant may be run automatically.

Refer to "Creating a Release 2.2 Repository" on page 2-1 to create a repository using the Oracle Enterprise Configuration Assistant.

Make sure the Management Server is running.

Note: The repository database must be started and open and the listener must be started before starting the Management Server. Otherwise, an error occurs.

Refer to "Controlling the Management Server" on page 3-1.

Launch the Console (client), and at the login, point to the Management Server on the same node.

Refer to "Starting the Enterprise Manager Console" on page 6-3.

Procedure	Refer to
Use an existing database for the Oracle Management Server repository or install and use a new Oracle database.	Refer to the installation guide provided with the database release.
Install the Management Server, and the Oracle Enterprise Manager client software in a new ORACLE_HOME. If you are installing from the database CD, choose the install type: Oracle8i Management and Integration->Oracle Management Server. If you are installing from the separately licensable packs CD, choose the install type: Oracle Enterprise Manager Packs and Management Infrastructure.	Refer to the installation guide provided with the database release or the installation guide provided with the separately licensable packs.
At the end of installation, create a repository in your database. Depending on which installation type you have chosen, the Oracle Enterprise Configuration Assistant may be run automatically.	Refer to "Creating a Release 2.2 Repository" on page 2-1 to create a repository using the Oracle Enterprise Configuration Assistant.
Make sure the Management Server is running. Note: The repository database must be started and open and the listener must be started before starting the Management Server. Otherwise, an error occurs.	Refer to "Controlling the Management Server" on page 3-1.
Launch the Console (client), and at the login, point to the Management Server on the same node.	Refer to "Starting the Enterprise Manager Console" on page 6-3.

Configuring Oracle Enterprise Manager for a Large Enterprise

The following configuration is best for large environments with many managed databases and services. Large environments are environments which administer more than 64 managed nodes.

Procedure	Refer to
Make sure you have installed an Intelligent Agent on the node to be managed. If not, install a version of the Intelligent Agent which is the same or higher than the highest version of the database present on the machine. If the Intelligent Agent version is the same as the database version, you can install them in the same ORACLE_HOME, otherwise the Intelligent Agent will have to be installed in a separate ORACLE_HOME.	Refer to the installation guide provided with the database release.
Start the Intelligent Agent, and check that all services are recorded in the services.ora file which is located in the ORACLE_HOME/network/agent directory.	Refer to the Oracle Intelligent Agent User's Guide for details if you encounter any problems.

Procedure Refer to

Use an existing database for the Oracle Management Server repository or install and use a new Oracle database.

If you are using an existing database, run the Oracle Enterprise Configuration Assistant to create a repository.

If you are installing a new database, at the end of installation, create a repository in your database. Depending on which installation type you have chosen, the Oracle Enterprise Configuration Assistant may be run automatically.

Refer to the installation guide provided with the database release.
Refer to "Creating a Release 2.2 Repository" on page 2-1 to create a repository using the Oracle Enterprise Configuration Assistant.

Procedure	Refer to
Use an existing database for the Oracle Management Server repository or install and use a new Oracle database. If you are using an existing database, run the Oracle Enterprise Configuration Assistant to create a repository. If you are installing a new database, at the end of installation, create a repository in your database. Depending on which installation type you have chosen, the Oracle Enterprise Configuration Assistant may be run automatically.	Refer to the installation guide provided with the database release. Refer to "Creating a Release 2.2 Repository" on page 2-1 to create a repository using the Oracle Enterprise Configuration Assistant.

Procedure Refer to

Install the Management Server in a new ORACLE_HOME.

If you are installing from the database CD, choose the install type: Oracle8i Management and Integration->Oracle Management Server.

If you are installing from the separately licensable packs CD, choose the install type: Oracle Enterprise Manager Packs and Management Infrastructure--> Custom-->Oracle Management Server.

Refer to the installation guide provided with the database release or the installation guide provided with the separately licensable packs.

Run the Oracle Enterprise Configuration Assistant to set up the Management Server to manage an already existing repository.

Refer to "Edit Configuration Parameters" on page B-9.

Make sure the Management Server is running.

Note: The repository database must be started and open and the listener must be started before starting the Management Server. Otherwise, an error occurs.

Refer to "Controlling the Management Server" on page 3-1.

Procedure	Refer to
Install the Management Server in a new ORACLE_HOME. If you are installing from the database CD, choose the install type: Oracle8i Management and Integration->Oracle Management Server. If you are installing from the separately licensable packs CD, choose the install type: Oracle Enterprise Manager Packs and Management Infrastructure--> Custom-->Oracle Management Server.	Refer to the installation guide provided with the database release or the installation guide provided with the separately licensable packs.
Run the Oracle Enterprise Configuration Assistant to set up the Management Server to manage an already existing repository.	Refer to "Edit Configuration Parameters" on page B-9.
Make sure the Management Server is running. Note: The repository database must be started and open and the listener must be started before starting the Management Server. Otherwise, an error occurs.	Refer to "Controlling the Management Server" on page 3-1.

Procedure Refer to

Install the Oracle Enterprise Manager client software in a new ORACLE_HOME.
If you are installing from the database CD, choose the install type: Oracle8i Client->Administrator.
If you are installing from the separately licensable packs CD, choose the install type: Oracle Enterprise Manager Packs and Management Infrastructure.

Refer to the installation guide provided with the database release or the installation guide provided with the separately licensable packs.

Launch the Console (client), and at the login, point to the Management Server.

Refer to "Starting the Enterprise Manager Console" on page 6-3.

Procedure	Refer to
Install the Oracle Enterprise Manager client software in a new ORACLE_HOME. If you are installing from the database CD, choose the install type: Oracle8i Client->Administrator. If you are installing from the separately licensable packs CD, choose the install type: Oracle Enterprise Manager Packs and Management Infrastructure.	Refer to the installation guide provided with the database release or the installation guide provided with the separately licensable packs.
Launch the Console (client), and at the login, point to the Management Server.	Refer to "Starting the Enterprise Manager Console" on page 6-3.

Note:
If you want to have multiple clients working concurrently, install the client software on multiple clients.

Procedure Refer to

If the current Management Server is overloaded, install additional Management Servers on different machines.

If you are installing from the database CD, choose the install type: Oracle8i Management and Integration->Oracle Management Server.

If you are installing from the separately licensable packs CD, choose the install type: Oracle Enterprise Manager Packs and Management Infrastructure--> Custom-->Oracle Management Server.

Refer to the installation guide provided with the database release or the installation guide provided with the separately licensable packs.

Run the Oracle Enterprise Configuration Assistant on each of the machines to set up the Management Server to manage an already existing repository.

Refer to "Adding Additional Management Servers" on page 4-1.

Make sure the Management Server is running.

Note: The repository database must be started and open and the listener must be started before starting the Management Server. Otherwise, an error occurs.

Refer to "Controlling the Management Server" on page 3-1.

Procedure	Refer to
If the current Management Server is overloaded, install additional Management Servers on different machines. If you are installing from the database CD, choose the install type: Oracle8i Management and Integration->Oracle Management Server. If you are installing from the separately licensable packs CD, choose the install type: Oracle Enterprise Manager Packs and Management Infrastructure--> Custom-->Oracle Management Server.	Refer to the installation guide provided with the database release or the installation guide provided with the separately licensable packs.
Run the Oracle Enterprise Configuration Assistant on each of the machines to set up the Management Server to manage an already existing repository.	Refer to "Adding Additional Management Servers" on page 4-1.
Make sure the Management Server is running. Note: The repository database must be started and open and the listener must be started before starting the Management Server. Otherwise, an error occurs.	Refer to "Controlling the Management Server" on page 3-1.

Upgrading Your Oracle Enterprise Manager Framework and Management Packs

The upgrade of the Oracle Enterprise Manager framework (Console, Management Server, repository, and Intelligent Agent) and Management Packs from previous 2.x releases to Release 2.2 must be performed in the order documented below.

Important:
The Enterprise Manager Console, DBA Management Pack, separately licensable Packs, Management Server and repository must all be of the same release. For example, you cannot use a Release 2.1 Management Server and repository with a Release 2.2 Console nor can you use a Release 2.2 Management Server and repository with a Release 2.1 Pack.
If the existing Management Server and repository are of a previous version, then you can migrate or upgrade them to the most recent version. In the case of migrating or upgrading a Management Server and repository to Release 2.2, ensure that all Enterprise Manager products you intend to use with the repository are of Release 2.2. For instance, do not upgrade the Management Server and repository to Release 2.2 if you are still using Diagnostics Pack Release 2.1 or Change Management Pack Release 2.1.

Procedure Reference

Upgrade all components such as the Oracle Enterprise Manager Console, the Management Server, DBA Studio, and any other separately licensable packs you have installed.

Refer to the installation guide provided with the database release and the installation guide provided with the separately licensable packs.

Upgrade your repository from Release 2.x to Release 2.2. You should not schedule any repository upgrades until all Oracle Enterprise Manager components other than the Intelligent Agent have been upgraded to Oracle Enterprise Manager Release 2.2.

Refer to "Upgrade a Release 2.0 or 2.1 Repository to a Release 2.2 Repository" on page B-1

Upgrade the Intelligent Agent to Release 8.1.7 for each managed node.

Note: If the 8.1.7 Intelligent Agent is installed in a new home, you must copy the .Q files over to the new home.

Note: The Intelligent Agent and Agent Data Gatherer must be the last components to be upgraded because once the Intelligent Agent is upgraded to Release 8.1.7, the pre-2.2 components such as the Management Server will consider the Intelligent Agent invalid.

Refer to "Upgrading the Intelligent Agent and Data Gatherer" on page C-1.

Upgrade the Agent Data Gatherer to Release 8.1.7 for each node that you have configured for collections.

Refer to "Upgrading the Intelligent Agent and Data Gatherer" on page C-1.

Procedure	Reference
Upgrade all components such as the Oracle Enterprise Manager Console, the Management Server, DBA Studio, and any other separately licensable packs you have installed.	Refer to the installation guide provided with the database release and the installation guide provided with the separately licensable packs.
Upgrade your repository from Release 2.x to Release 2.2. You should not schedule any repository upgrades until all Oracle Enterprise Manager components other than the Intelligent Agent have been upgraded to Oracle Enterprise Manager Release 2.2.	Refer to "Upgrade a Release 2.0 or 2.1 Repository to a Release 2.2 Repository" on page B-1
Upgrade the Intelligent Agent to Release 8.1.7 for each managed node. Note: If the 8.1.7 Intelligent Agent is installed in a new home, you must copy the .Q files over to the new home. Note: The Intelligent Agent and Agent Data Gatherer must be the last components to be upgraded because once the Intelligent Agent is upgraded to Release 8.1.7, the pre-2.2 components such as the Management Server will consider the Intelligent Agent invalid.	Refer to "Upgrading the Intelligent Agent and Data Gatherer" on page C-1.
Upgrade the Agent Data Gatherer to Release 8.1.7 for each node that you have configured for collections.	Refer to "Upgrading the Intelligent Agent and Data Gatherer" on page C-1.

Migrating Your Repository

An Oracle Enterprise Manager Release 1.x repository schema is not the same as an Oracle Enterprise Manager "shared" Release 2.2 repository schema. In Enterprise Manager Release 1.x, each administrator had a separate repository schema which contained the current view of the network and user-specific information. In Enterprise Manager Release 2.2, administrators have accounts within a single shared repository schema, and all individual preferences are stored in the administrator's account.

Each Release 1.x repository must be separately migrated to a new Release 2.2 repository.

The procedures below highlight the basic steps for migrating a repository.

Procedure Refer to

Use an existing database for the new Oracle Management Server Release 2.2 repository or install and use a new Oracle database.

Refer to the installation guide provided with the database release.

Install the Management Server, Enterprise Manager Migration Assistant, and the Oracle Enterprise Manager client software in a new ORACLE_HOME.

If you are installing from the database CD, choose the install type: Oracle8i Management and Integration->Oracle Management Server.

If you are installing from the separately licensable packs CD, choose the install type: Oracle Enterprise Manager Packs and Management Infrastructure.

Refer to the installation guide provided with the database release or the installation guide provided with the separately licensable packs.

At the end of installation, create a new Release 2.2 repository in your database. Depending on which installation type you have chosen, the Oracle Enterprise Configuration Assistant may be run automatically.

Refer to "Creating a Release 2.2 Repository" on page 2-1 to create a repository using the Oracle Enterprise Configuration Assistant.

Make sure the Release 2.2 Management Server is running.

Note: The Release 2.2 repository database must be started and open and the listener must be started before starting the Management Server. Otherwise, an error occurs.

Refer to "Controlling the Management Server" on page 3-1.

Launch the Release 2.2 Console (client), and at the login, point to the Management Server on the same node.

Refer to "Starting the Enterprise Manager Console" on page 6-3.

Procedure	Refer to
Use an existing database for the new Oracle Management Server Release 2.2 repository or install and use a new Oracle database.	Refer to the installation guide provided with the database release.
Install the Management Server, Enterprise Manager Migration Assistant, and the Oracle Enterprise Manager client software in a new ORACLE_HOME. If you are installing from the database CD, choose the install type: Oracle8i Management and Integration->Oracle Management Server. If you are installing from the separately licensable packs CD, choose the install type: Oracle Enterprise Manager Packs and Management Infrastructure.	Refer to the installation guide provided with the database release or the installation guide provided with the separately licensable packs.
At the end of installation, create a new Release 2.2 repository in your database. Depending on which installation type you have chosen, the Oracle Enterprise Configuration Assistant may be run automatically.	Refer to "Creating a Release 2.2 Repository" on page 2-1 to create a repository using the Oracle Enterprise Configuration Assistant.
Make sure the Release 2.2 Management Server is running. Note: The Release 2.2 repository database must be started and open and the listener must be started before starting the Management Server. Otherwise, an error occurs.	Refer to "Controlling the Management Server" on page 3-1.
Launch the Release 2.2 Console (client), and at the login, point to the Management Server on the same node.	Refer to "Starting the Enterprise Manager Console" on page 6-3.

Procedure Refer to

Create administrator accounts.

Refer to"Creating Administrator Accounts" on page 6-6.

Refresh All Services in the Release 1.x Console.

Refer to the Release 1.x Oracle Enterprise Manager Administrator's Guide.

Shut Down the Release 1.x Console.

Refer to the Release 1.x Oracle Enterprise Manager Administrator's Guide.

Shut Down the Release 2.2 Management Server

Refer to "Controlling the Management Server" on page 3-1.

Back Up the Existing Release 1.x Repository.

For detailed information about the Export utility, refer to Oracle8i Utilities.

Procedure	Refer to
Create administrator accounts.	Refer to"Creating Administrator Accounts" on page 6-6.
Refresh All Services in the Release 1.x Console.	Refer to the Release 1.x Oracle Enterprise Manager Administrator's Guide.
Shut Down the Release 1.x Console.	Refer to the Release 1.x Oracle Enterprise Manager Administrator's Guide.
Shut Down the Release 2.2 Management Server	Refer to "Controlling the Management Server" on page 3-1.
Back Up the Existing Release 1.x Repository.	For detailed information about the Export utility, refer to Oracle8i Utilities.

Procedure Refer to

Run the Release 2.2 Oracle Enterprise Manager Migration Assistant to migrate data you are using in your V1.x environment from one or multiple private repositories into a specific user in your new Release 2.2 repository.

Refer to "Migrating a Release 1.x Repository to a Release 2.2 Repository" on page 7-1.

1 Introducing Oracle Enterprise Manager
